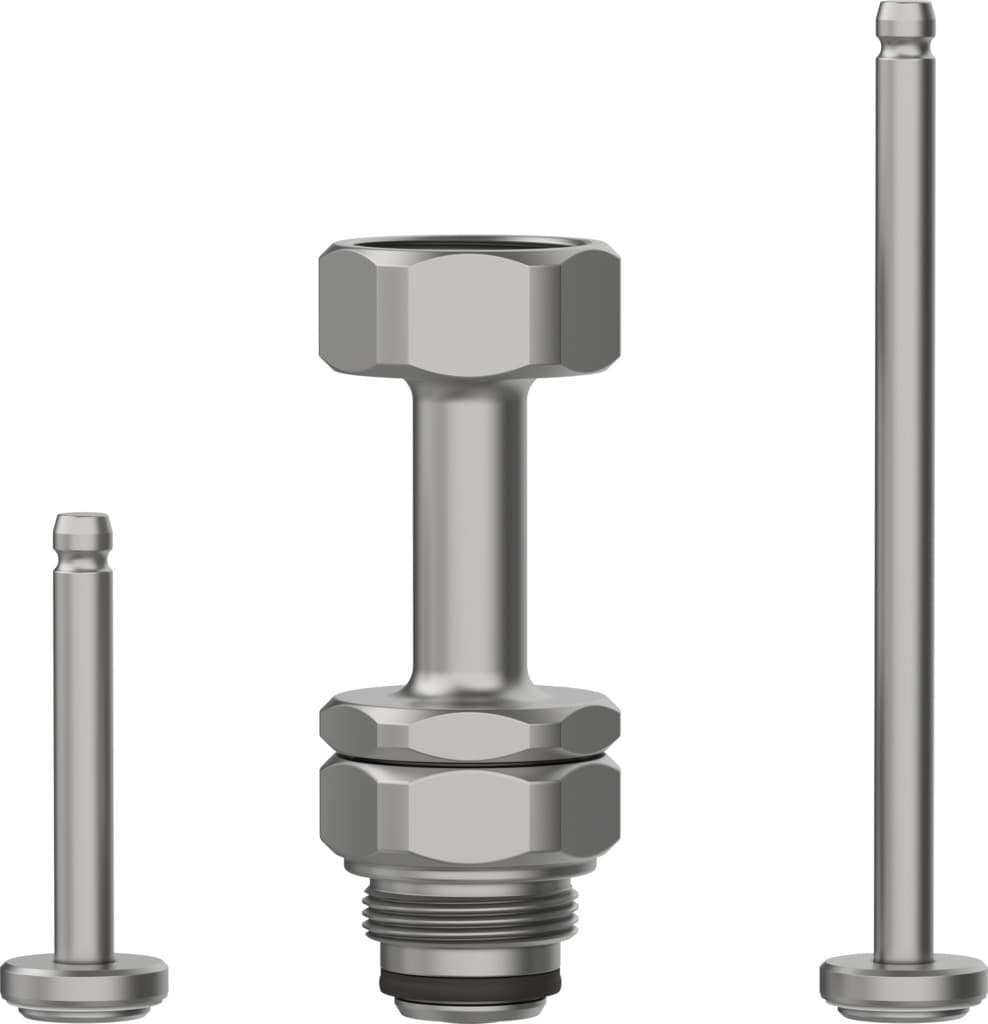

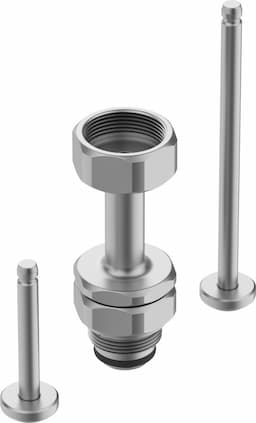

vavc-f12-scc-25-p
Product ID:117
Updated: 2026/7/4
Key Features
- 1Ensure explosion protection for ATEX Zones 1, 2, and 21.
- 2Fit various pneumatic valves with a 25 DN nominal diameter.
- 3Construct the kit from durable, corrosion-resistant high-alloy stainless steel.
- 4Seal reliably with a PTFE spindle against diverse media.
- 5Operate across a wide -30°C to 200°C medium temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 25 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | 100°C 230°C |
| Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
| Mounting position | Any | Product weight | 921g |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Spindle seal material | PTFE | Seat seal material | PEEK |
| Manufacturer ID | 8201223 |
Specifications may be subject to change without notice
