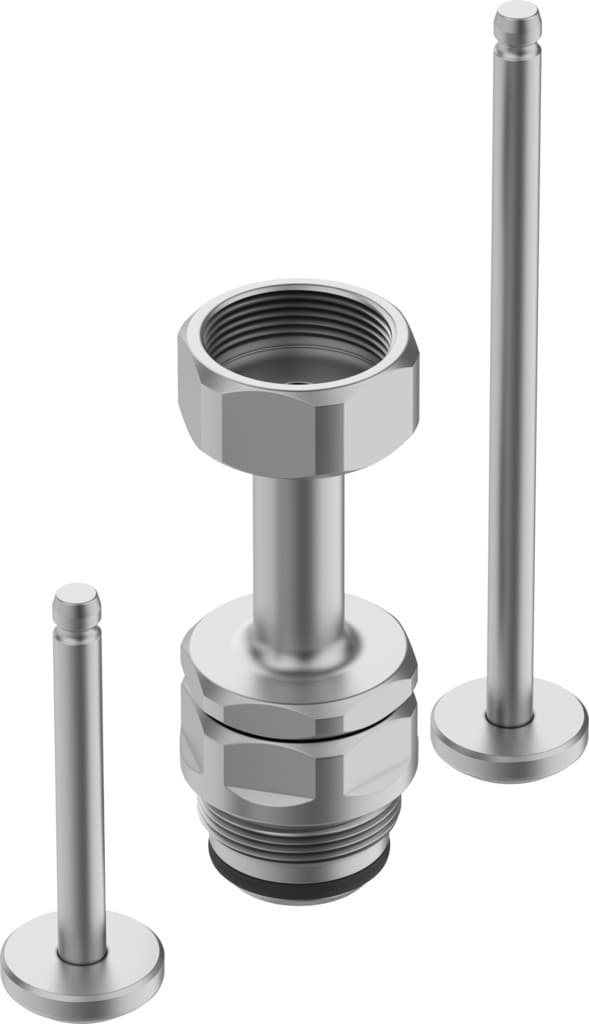

vavc-f12-scc-32-p
Product ID:116
Updated: 2026/7/4
Key Features
- 1Fit the VAVC-F12-SCC-32-P cover kit to DN32 nominal size valves.
- 2Operate reliably with vapour, oil, water, and filtered air.
- 3Utilize high-alloy stainless steel and PTFE seals for durability.
- 4Comply with ATEX and RoHS for hazardous area safety.
- 5Install flexibly within a -30°C to 200°C temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 32 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | 100°C 230°C |
| Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
| Mounting position | Any | Product weight | 1080g |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Spindle seal material | PTFE | Seat seal material | PEEK |
| Manufacturer ID | 8201224 |
Specifications may be subject to change without notice
