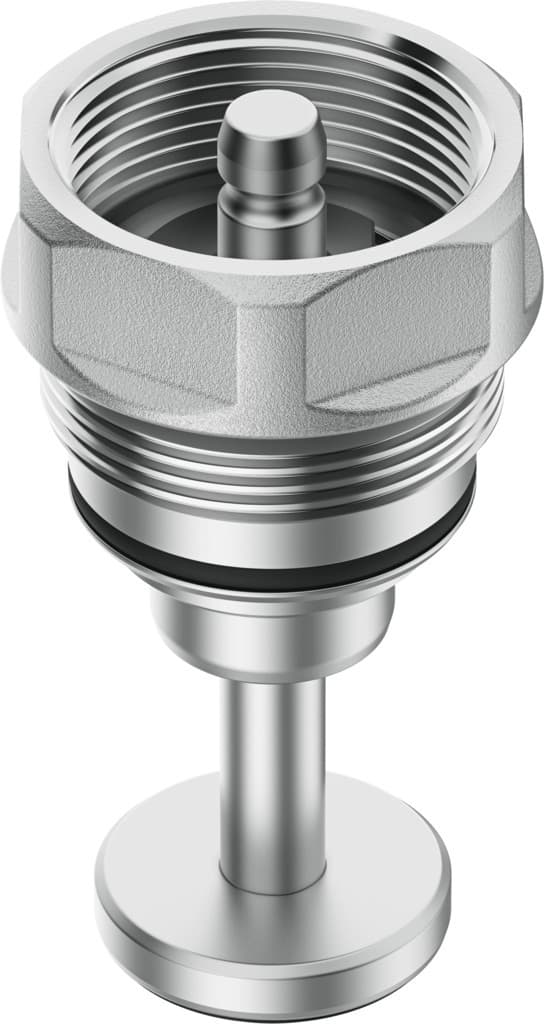

vavc-f12-scc-32-tp
Product ID:16500
Updated: 2026/4/3
Key Features
- 1Utilize high-alloy stainless steel for superior durability. 2、Employ PTFE spindle and seat seals for reliable sealing. 3、Comply with VDMA24364 zone III safety standards. 4、Handle diverse media including vapor, oil, and gases. 5、Operate reliably from -30°C to 200°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 32 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | -30°C 200°C |
| Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
| Mounting position | Any | Product weight | 424g |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Spindle seal material | PTFE | Seat seal material | PTFE, modified |
| Manufacturer ID | 8084034 |
Specifications may be subject to change without notice
