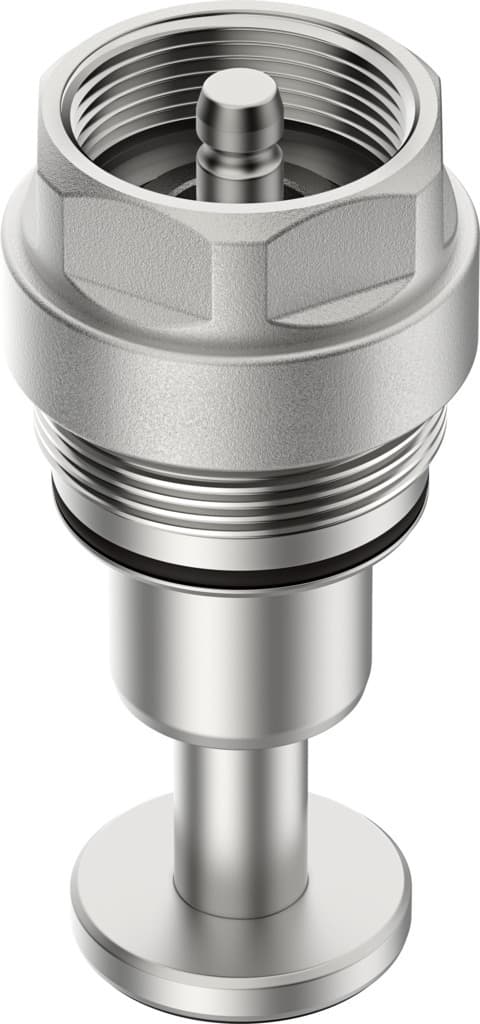

vavc-f12-scc-40-tp
Product ID:16499
Updated: 2026/7/4
Key Features
- 1Obtain ATEX certification for Zones 1, 2, and 21.
- 2Handle vapor, oil, inert gases, water, and filtered air.
- 3Utilize high-alloy stainless steel and PTFE seals.
- 4Operate reliably from -30 °C to 200 °C.
- 5Install easily with nominal size DN 40.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 40 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | -30°C 200°C |
| Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
| Mounting position | Any | Product weight | 846g |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Spindle seal material | PTFE | Seat seal material | PTFE, modified |
| Manufacturer ID | 8084032 |
Specifications may be subject to change without notice
