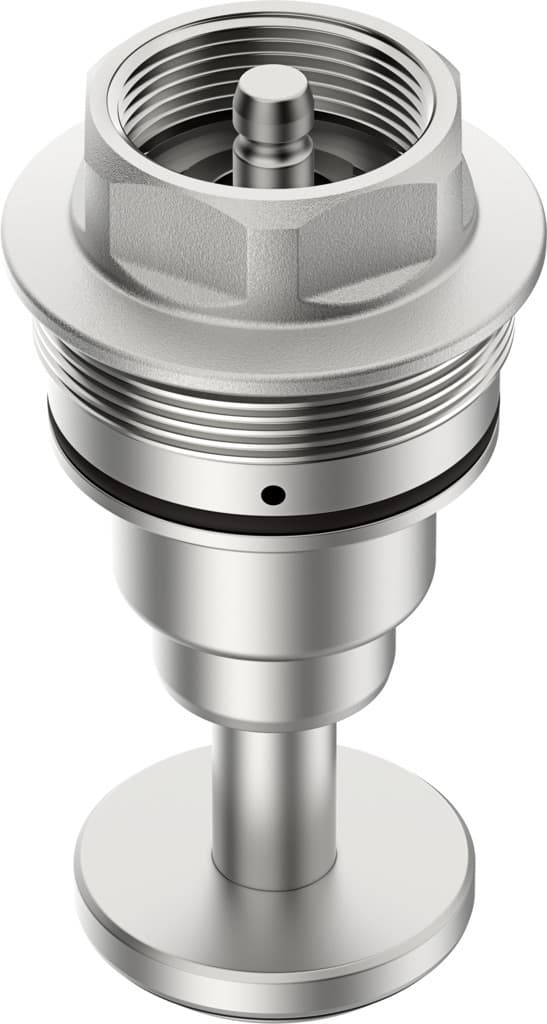

vavc-f12-scc-50-tp
Product ID:16503
Updated: 2026/7/4
Key Features
- 1Construct with high-alloy stainless steel for corrosion resistance.
- 2Handle vapor, hydraulic fluid, inert gases, and compressed air.
- 3Operate reliably from -30 °C to 200 °C.
- 4Meet ATEX Zone 1 and Zone 2 explosion safety standards.
- 5Simplify assembly with cover kit and lubricating grease.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 50 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| LABS (PWIS) conformity | VDMA24364 zone III | Medium | Vapor Hydraulic fluid based on mineral oil Inert gas Mineral oil Water Filtered compressed air, 200 μm filter mesh Neutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. | Temperature of medium | -30°C 200°C |
| Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
| Mounting position | Any | Product weight | 1180g |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Spindle seal material | PTFE | Seat seal material | PTFE, modified |
| Manufacturer ID | 8084045 |
Specifications may be subject to change without notice
