Key Features
- 1Install in versatile positions for any application.
- 2Monitor signal status clearly with bright LEDs.
- 3Withstand moderate corrosion with CRC 2 rating.
- 4Protect against dust and water with IP65.
- 5Operate reliably with 24V DC power.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 as per IEC 60529 | Ambient temperature | -5°C 60°C |
| Mounting position | Any | Tightening torque | 0.25Nm |
| Product weight | 3.5g | Electrical connection | 4-pin/2-pin M8 / - Plug/socket |
| Protective earth connection | Not available | Type of mounting | On air solenoid valve with M2 central screw |
| Note on materials | RoHS-compliant | Housing material | PA |
| Material of pin contacts | Bronze | Manufacturer ID | 573194 |
Specifications may be subject to change without notice

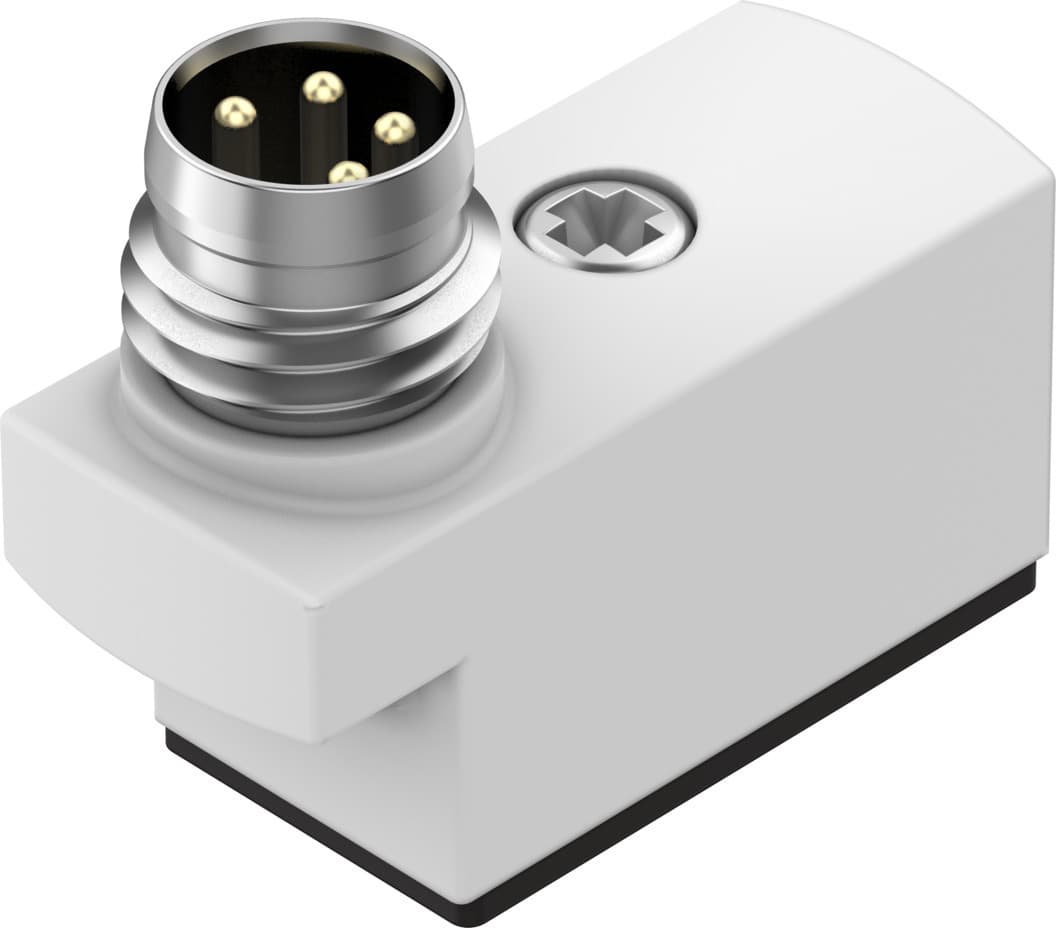

Still deciding on vave-c8-1r1?
