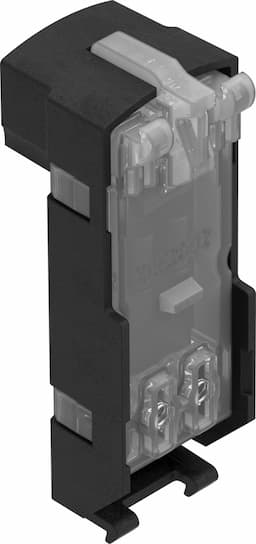

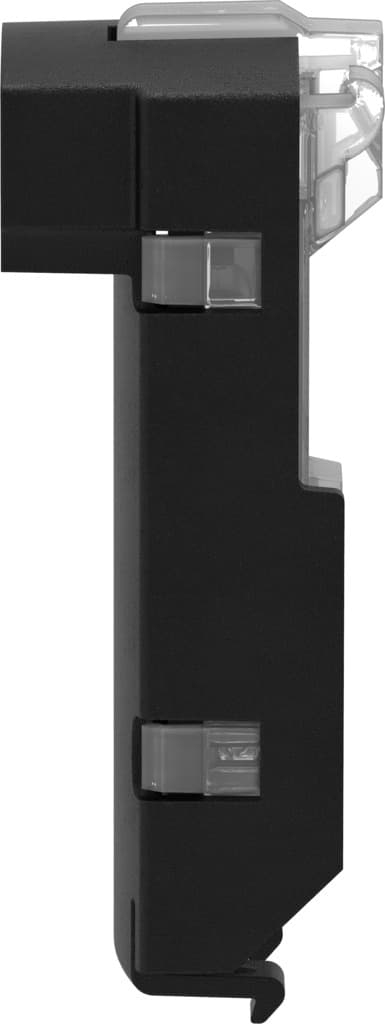

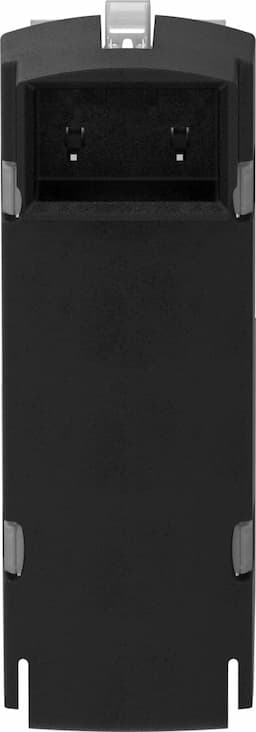

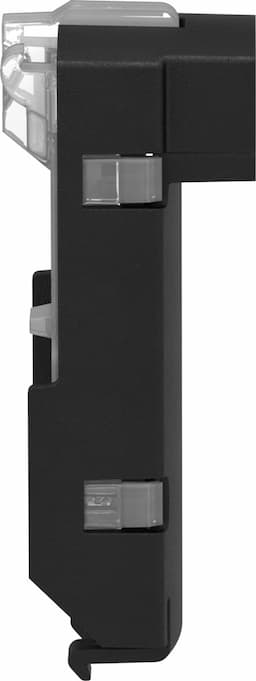

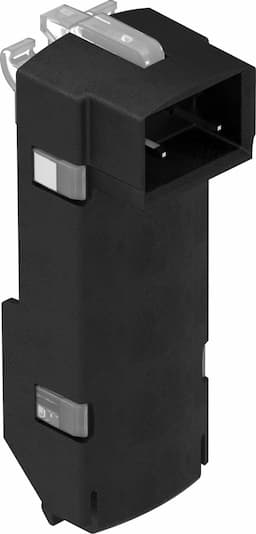

vave-l1-1h2-lr
Product ID:13403
Updated: 2026/4/4
Key Features
- 1Safeguard against incorrect voltage connections with reverse polarity protection. 2、Reduce electrical noise and ensure reliable operation via spark arresting. 3、Monitor device status clearly with an LED signal status display. 4、Operate reliably in various industrial settings with 24V DC nominal voltage. 5、Withstand up to 0.8 kV surge strength for added system reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | for operating voltage | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Product weight | 1.5g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566716 |
Specifications may be subject to change without notice
