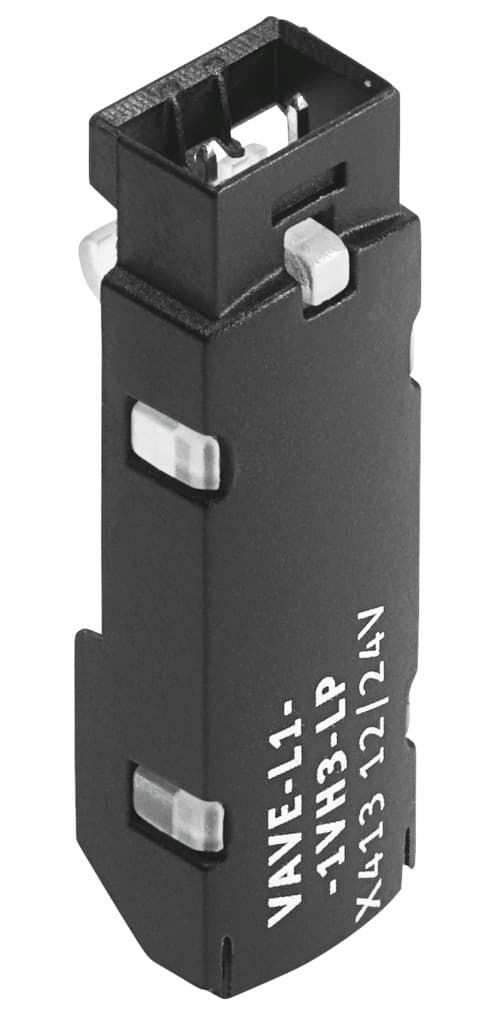

vave-l1-1h3-lr
Product ID:13404
Updated: 2026/4/4
Key Features
- 1Safeguard systems with reverse polarity protection. 2、Reduce electrical sparks for enhanced operational safety. 3、Minimize power consumption to just 0.35 watts. 4、Monitor status easily via an LED indicator. 5、Ensure compliance with CE and UKCA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | for operating voltage | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Product weight | 1.5g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566717 |
Specifications may be subject to change without notice
