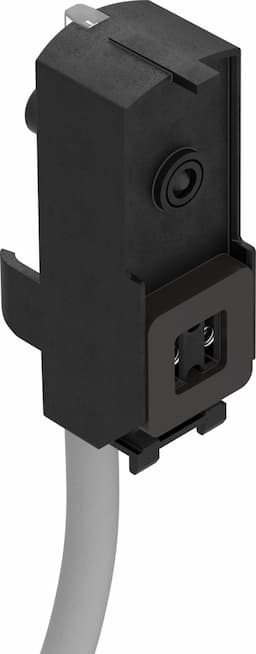

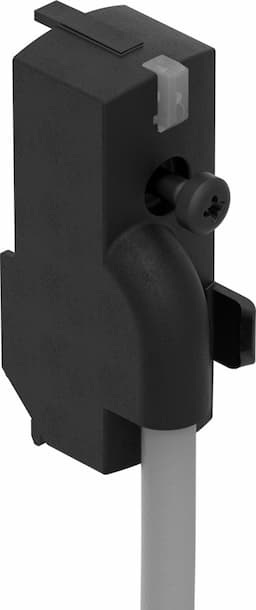

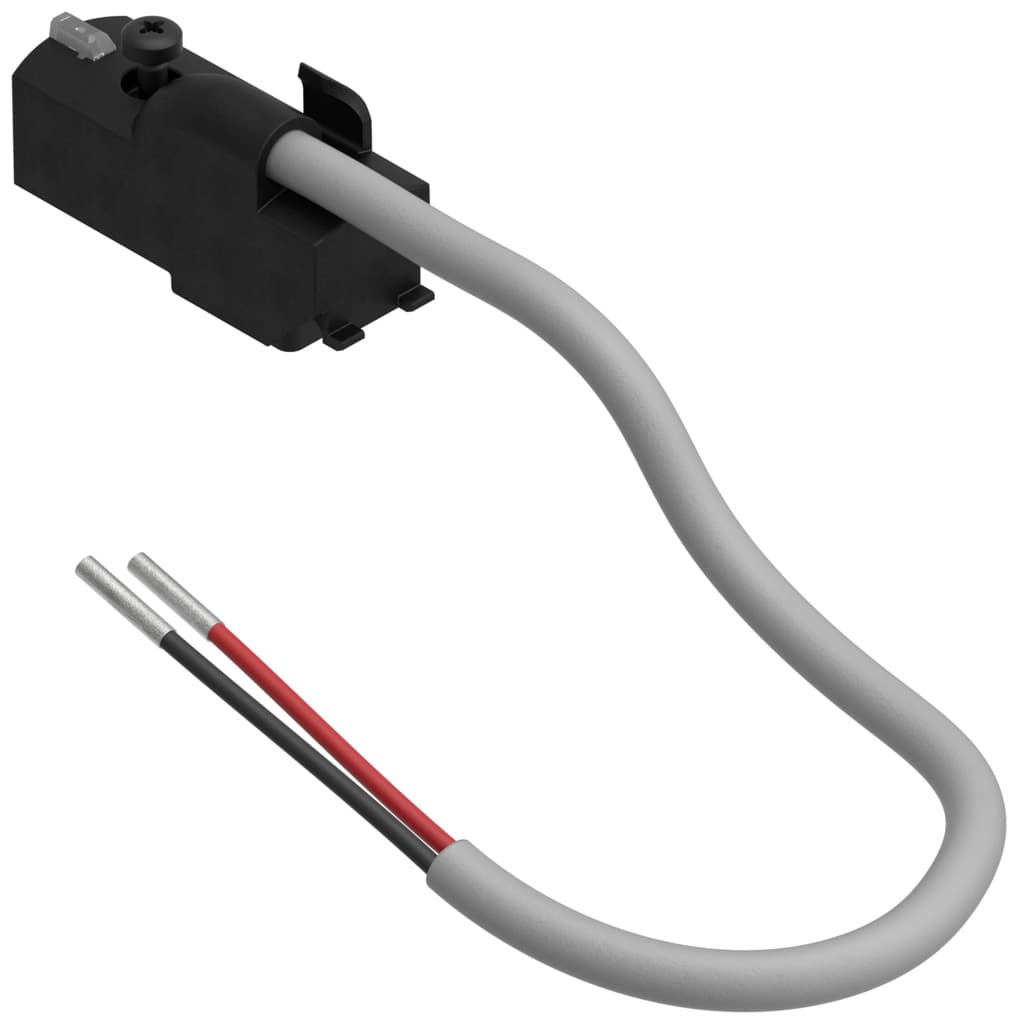

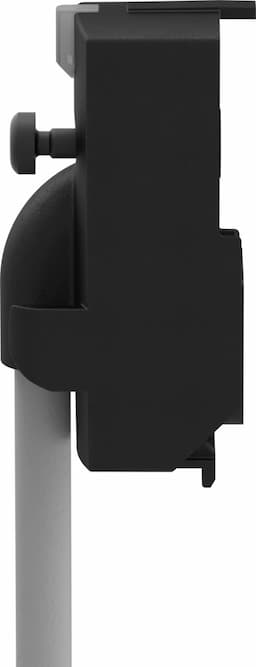

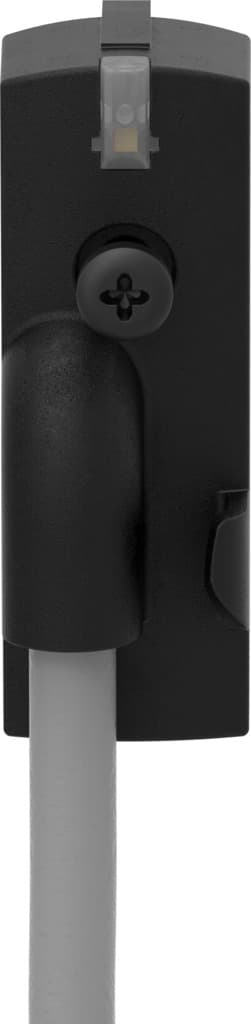

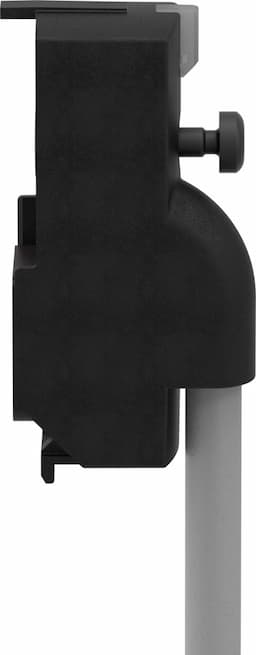

vave-l1-1k9-lr
Product ID:13917
Updated: 2026/7/15
Key Features
- 1Ensure safe operation with bipolar reverse polarity protection.
- 2Reduce electrical discharges via the spark arresting function.
- 3Monitor system status clearly with LED signal display.
- 4Protect against dust and water with IP65 rating.
- 5Meet environmental standards using RoHS compliant materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable characteristic | for static applications | Reverse polarity protection | Bipolar |
| Additional functions | Spark suppression Holding current reduction | Signal status display | LED |
| Nominal operating voltage DC | 24V | Surge resistance | 0.8kV |
| Contamination level | 3 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 | Ambient temperature | -5°C 60°C |
| Mounting position | Any | Max. tightening torque | 0.27Nm |
| Min. cable bending radius | 34mm | Product weight | 92g |
| Electrical connection | 2-pin/2-wire Angled socket/cable Rectangular design/open end | Cable design | 2 x 0.25 mm2 |
| Cable diameter | 3.4mm | Cable diameter tolerance | ± 0.1 mm |
| Cable length | 5m | Wire ends | Cable end sleeve |
| Protective earth connection | Not available | Type of mounting | On air solenoid valve with self-tapping screw |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Cover material | PA | Seals material | EPDM |
| Housing material | PA | Material of cable sheath | TPV |
| Material of screws | Tempered steel | Manufacturer ID | 573948 |
Specifications may be subject to change without notice
