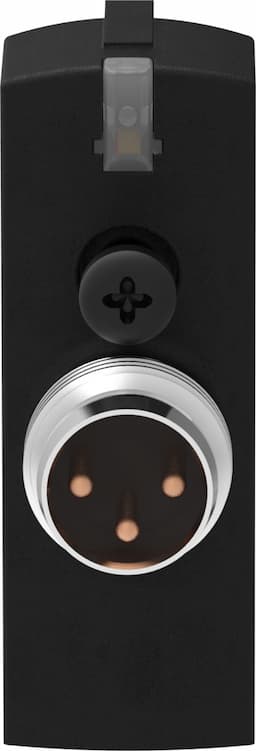

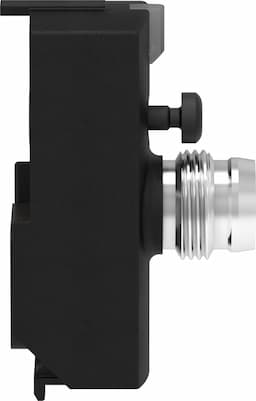

vave-l1-1r8-lr
Product ID:13898
Updated: 2026/4/4
Key Features
- 1Ensure safe operation with bipolar protection. 2、Reduce sparks during electrical connections for safety. 3、Confirm signal status visually via LED display. 4、Achieve reliable performance with 0.8 kV surge strength. 5、Resist dust and water with a durable housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Max. tightening torque | 0.27Nm | Product weight | 3.2g |
| Electrical connection | 3-pin/2-pin M8 / - Plug/socket | Protective earth connection | Not available |
| Type of mounting | On air solenoid valve with self-tapping screw | Housing colour | Black |
| Note on materials | RoHS-compliant | Cover material | PA |
| Seals material | EPDM | Housing material | PA |
| Material of screws | Tempered steel | Manufacturer ID | 573920 |
Specifications may be subject to change without notice
