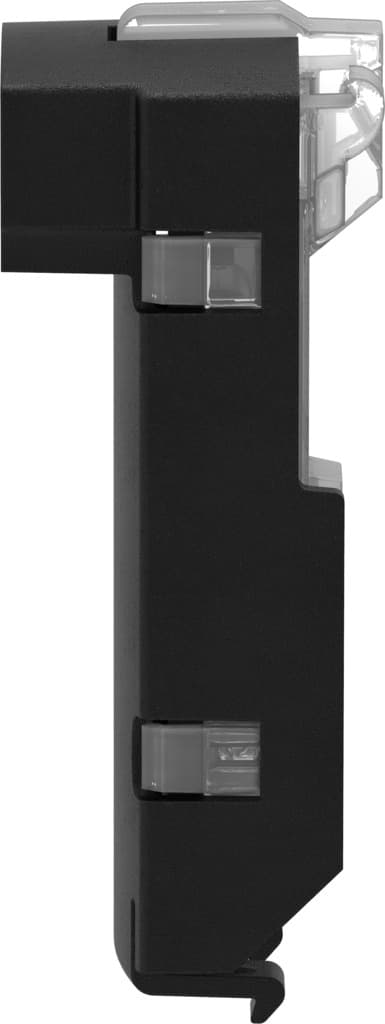

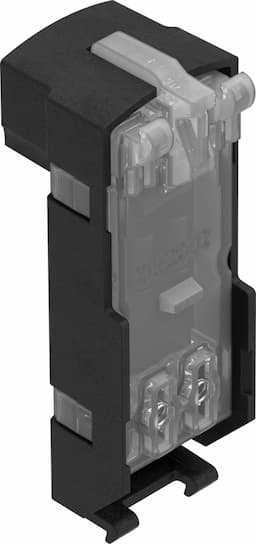

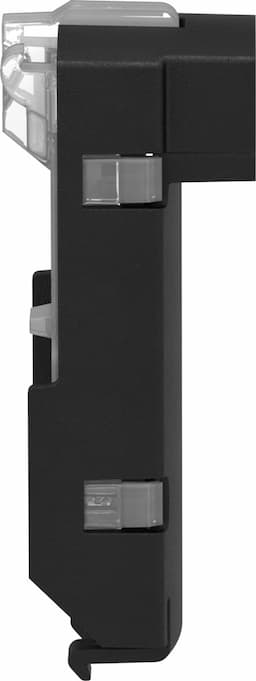

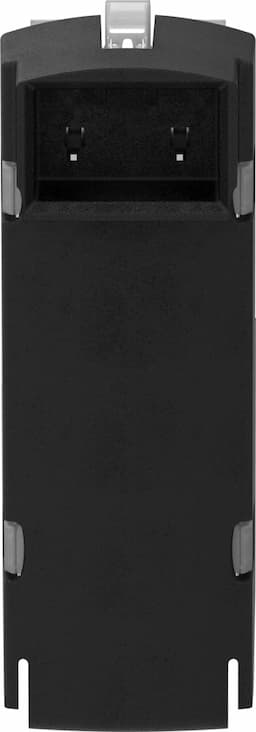

vave-l1-1vh2-lp
Product ID:13402
Updated: 2026/4/4
Key Features
- 1Ensure safe operation with bipolar protection in any environment. 2、Enhance functionality with integrated spark arresting and LED signal status display. 3、Operate flexibly at both 12 V and 24 V DC nominal operating voltages. 4、Withstand up to 0.8 kV surge strength for harsh condition reliability. 5、Resist corrosion with PA housing for -5°C to 60°C ambient temperatures.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 50°C | Mounting position | Any |
| Product weight | 1.5g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566714 |
Specifications may be subject to change without notice
