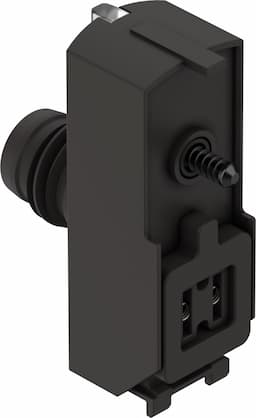

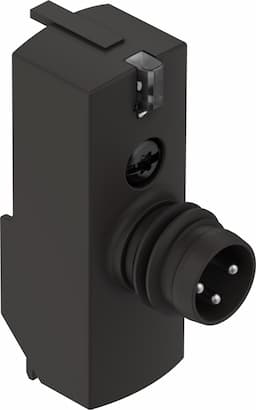

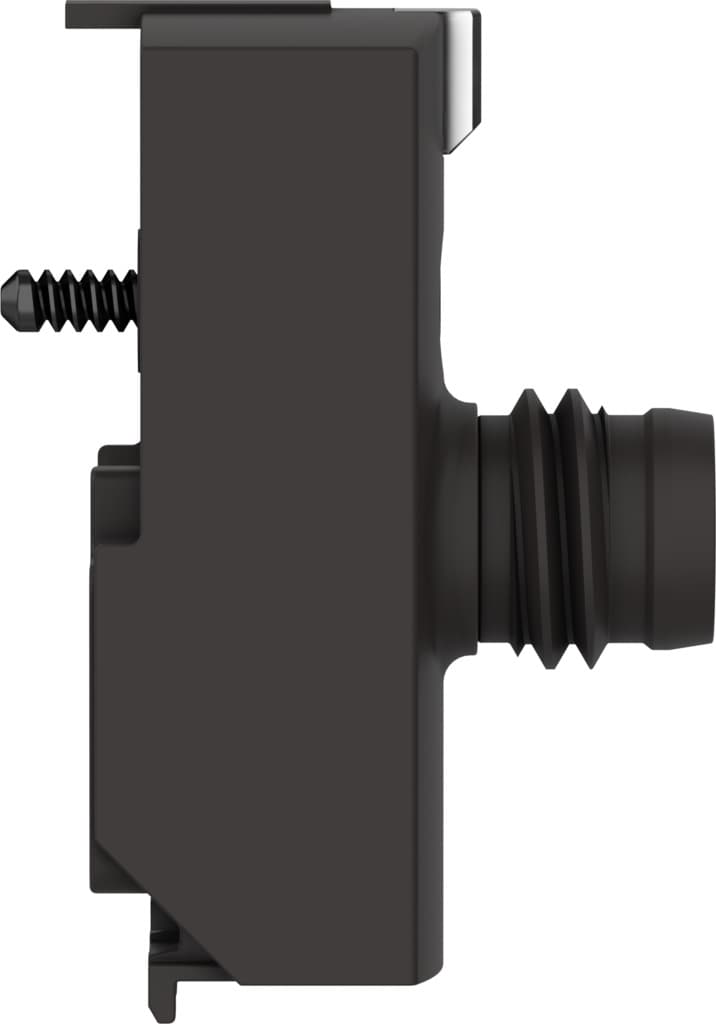

vave-l1-1vr8-lp
Product ID:13897
Updated: 2026/7/15
Key Features
- 1Ensure safe operation with bipolar protection in diverse environments.
- 2Prevent electrical sparks to enhance overall system reliability.
- 3Monitor real-time status easily via the integrated LED indicator.
- 4Maintain stability with 0.8 kV surge resistance during power fluctuations.
- 5Withstand harsh conditions due to moderate corrosion stress CRC 2.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
| Signal status display | LED | Nominal operating voltage DC | 12V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | -5°C 60°C |
| Mounting position | Any | Max. tightening torque | 0.27Nm |
| Product weight | 3.2g | Electrical connection | 3-pin/2-pin M8 / - Plug/socket |
| Protective earth connection | Not available | Type of mounting | On air solenoid valve with self-tapping screw |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Cover material | PA | Seals material | EPDM |
| Housing material | PA | Material of screws | Tempered steel |
| Manufacturer ID | 573919 |
Specifications may be subject to change without notice
