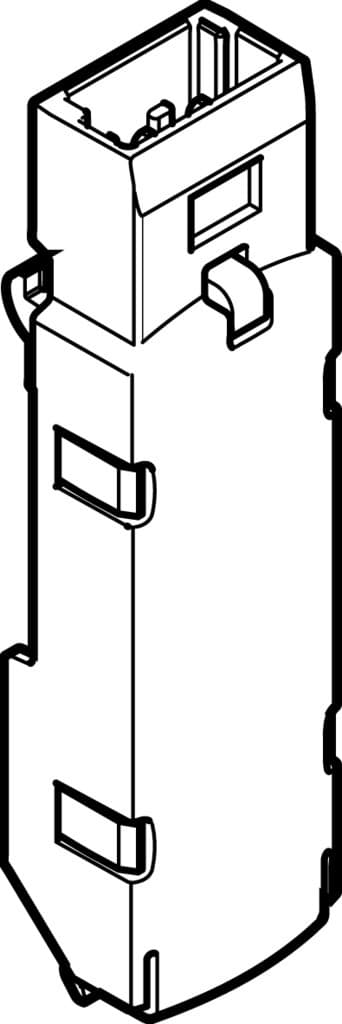

vave-l1-1vs3-lp
Product ID:13406
Updated: 2026/4/4
Key Features
- 1Safeguard against electrical shocks with built-in bipolar protection. 2、Prevent electrical sparks to ensure safe operation and reduce component wear. 3、Provide clear visual feedback on device status via an LED indicator. 4、Ensure compatibility with both 12V and 24V DC power sources. 5、Withstand electrical surges up to 0.8 kV for reliable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
| Signal status display | LED | Nominal operating voltage DC | 12V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 50°C | Mounting position | Any |
| Product weight | 1.6g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566719 |
Specifications may be subject to change without notice
