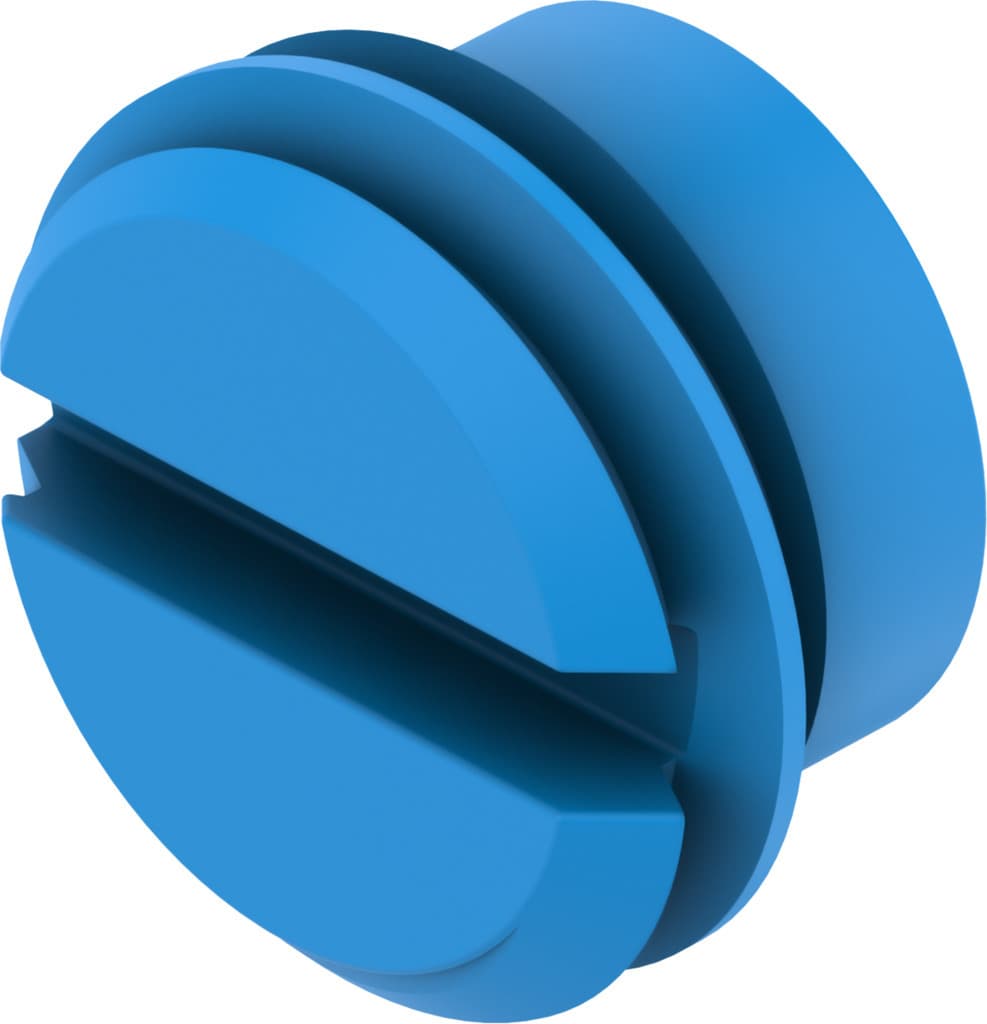

vffg-t-m5-12
Product ID:15181
Updated: 2026/4/3
Key Features
- 1Ensure precise flow control with a nominal rate of 45.4 L/min. 2、Rely on durable PA construction and RoHS compliance. 3、Meet ISO 8573-1 standards for reliable compressed air operation. 4、Operate across a wide pressure range from -0.9 to 10 bar. 5、Integrate easily with a compact, 1.2 mm nominal width design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Type of mounting | With thread |
| Standard nominal flow rate in flow control direction | 45.4l/min | Operating pressure | -0.9bar 10bar |
| Ambient temperature | -5°C 60°C | Nominal width | 1.2mm |
| b-value | 0.5 | C value | 0.16l/sbar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Product weight | 0.5g | Note on materials | RoHS-compliant |
| Hollow bolt material | PA | Manufacturer ID | 8025714 |
Specifications may be subject to change without notice
