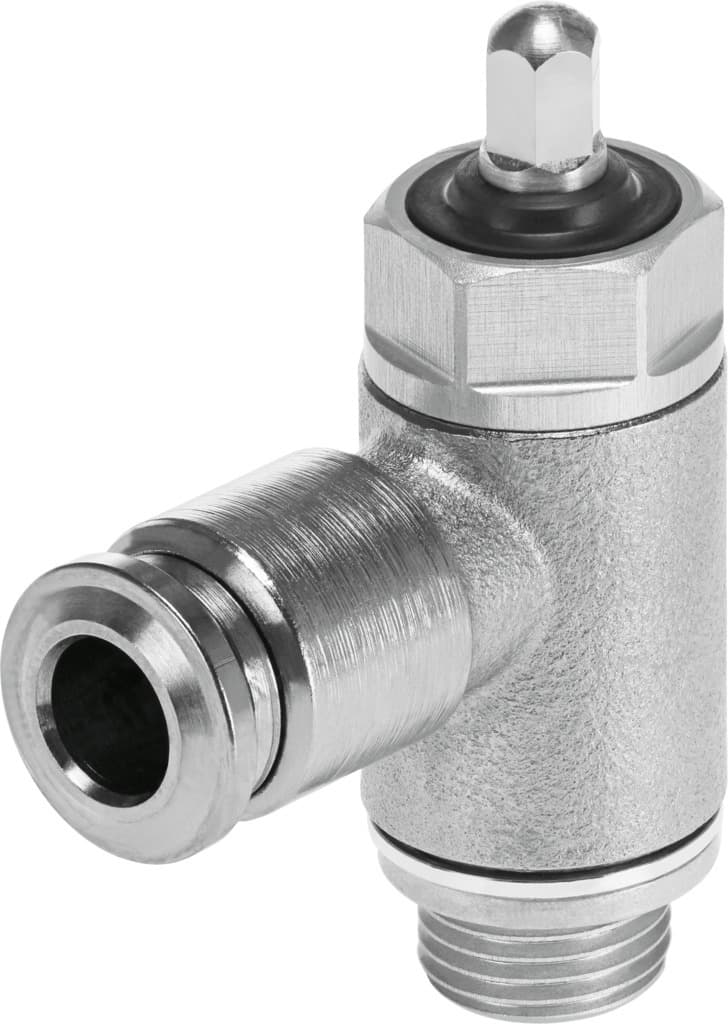

vfoh-le-a-g14-q10
Product ID:14736
Updated: 2026/4/3
Key Features
- 1Achieve 520 l/min standard flow in control direction. 2、Control airflow precisely with an external hexagon adjusting element. 3、Operate reliably from 0 °C to 150 °C ambient and medium temperature. 4、Ensure durability with RoHS-compliant, copper and PTFE-free materials. 5、Adapt to any mounting position for versatile pneumatic system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | G? | Actuation type | Manual |
| Adjusting element | External hexagon | Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 520l/min | Standard nominal flow rate in non-return direction | 345l/min 535l/min |
| Ambient temperature | 0°C 150°C | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 840l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 635l/min 790l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 150°C |
| Temperature of medium | 0°C 150°C | Nominal tightening torque | 5Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 48g |
| Note on materials | RoHS-compliant | Seals material | FPM |
| Hollow bolt material | Wrought aluminum alloy | Releasing ring material | Brass, nickel-plated |
| Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Brass Nickel-plated |
| Manufacturer ID | 578801 |
Specifications may be subject to change without notice
