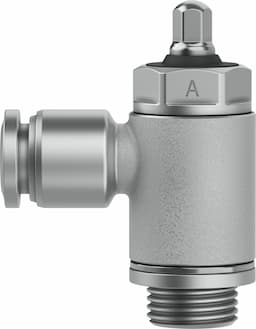

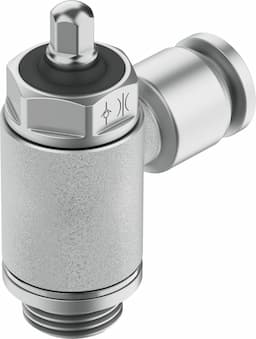

vfoh-le-a-g14-q8
Product ID:14735
Updated: 2026/7/4
Key Features
- 1Regulate one-way air flow with rates up to 720 l/min.
- 2Construct with high-alloy stainless steel and nickel-plated brass.
- 3Connect easily via QS-8 and G1/4 pneumatic ports.
- 4Operate across 0°C to 150°C and 0.2 to 10 bar.
- 5Ensure compliance with ISO 8573-1:2010 and RoHS standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G? | Actuation type | Manual |
| Adjusting element | External hexagon | Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 530l/min | Standard nominal flow rate in non-return direction | 402l/min 578l/min |
| Ambient temperature | 0°C 150°C | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 720l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 610l/min 760l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 150°C |
| Temperature of medium | 0°C 150°C | Nominal tightening torque | 5Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 37g |
| Note on materials | RoHS-compliant | Seals material | FPM |
| Hollow bolt material | Wrought aluminum alloy | Releasing ring material | Brass, nickel-plated |
| Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Brass Nickel-plated |
| Manufacturer ID | 578800 |
Specifications may be subject to change without notice
