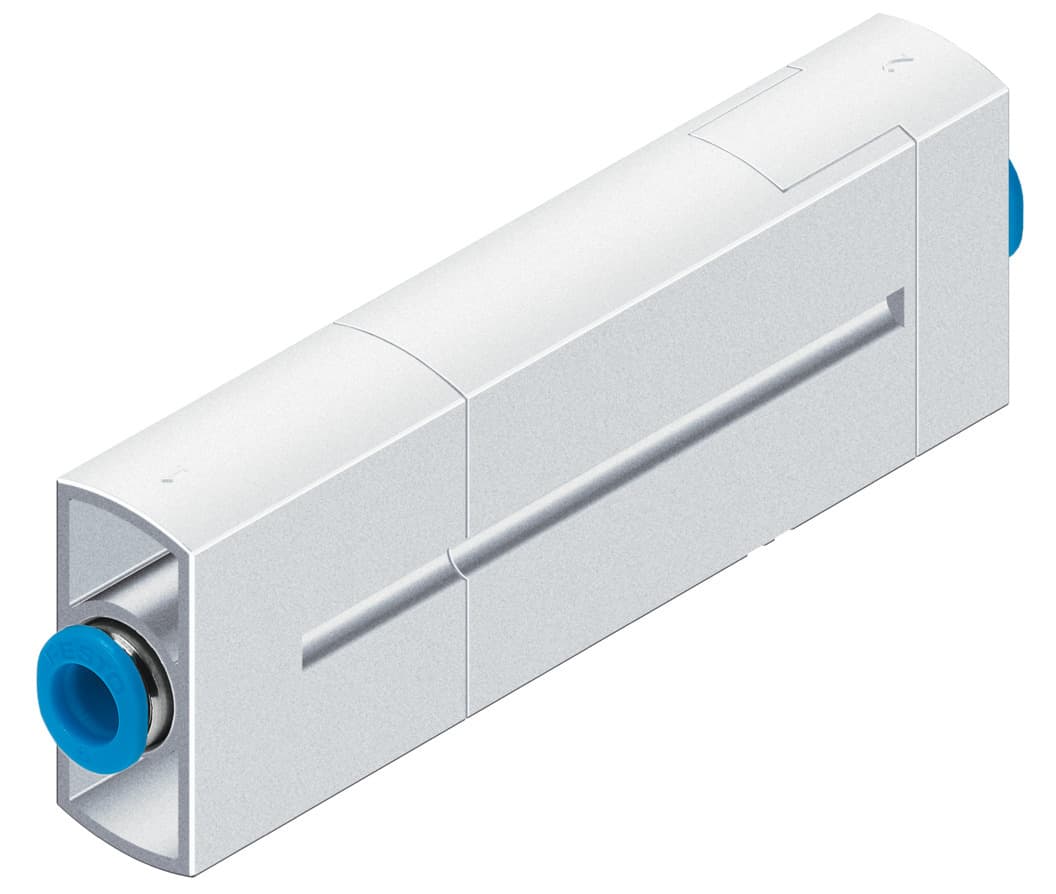

vn-05-n-i3-pq2-vq2-a
Product ID:9543
Updated: 2026/4/3
Key Features
- 1Deliver reliable vacuum with a 0.45mm nominal width. 2、Operate efficiently under pressures up to 8 bar. 3、Integrate easily into compact, inline automation systems. 4、Minimize downtime with robust, durable construction. 5、Configure settings flexibly for specific application needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 14.5mm |
| Mounting position | Any | Ejector characteristics | Inline High suction volume |
| Integrated function | Ejector pulse valve, pneumatic | Structural design | Straight design |
| Symbol | 00991484 | Operating pressure for max. suction rate | 5bar |
| Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 13.3l/min | Air supply time at nominal operating pressure | 2.24s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Cleaning advice | Soap suds |
| Noise level at nominal operating pressure | 68dB(A) | Ambient temperature | 0°C 60°C |
| Product weight | 38g | Type of mounting | Line installation |
| Pneumatic connection 1 | QS-6 | Vacuum connection | QS-6 |
| Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | PA-reinforced POM-reinforced | Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 532625 |
