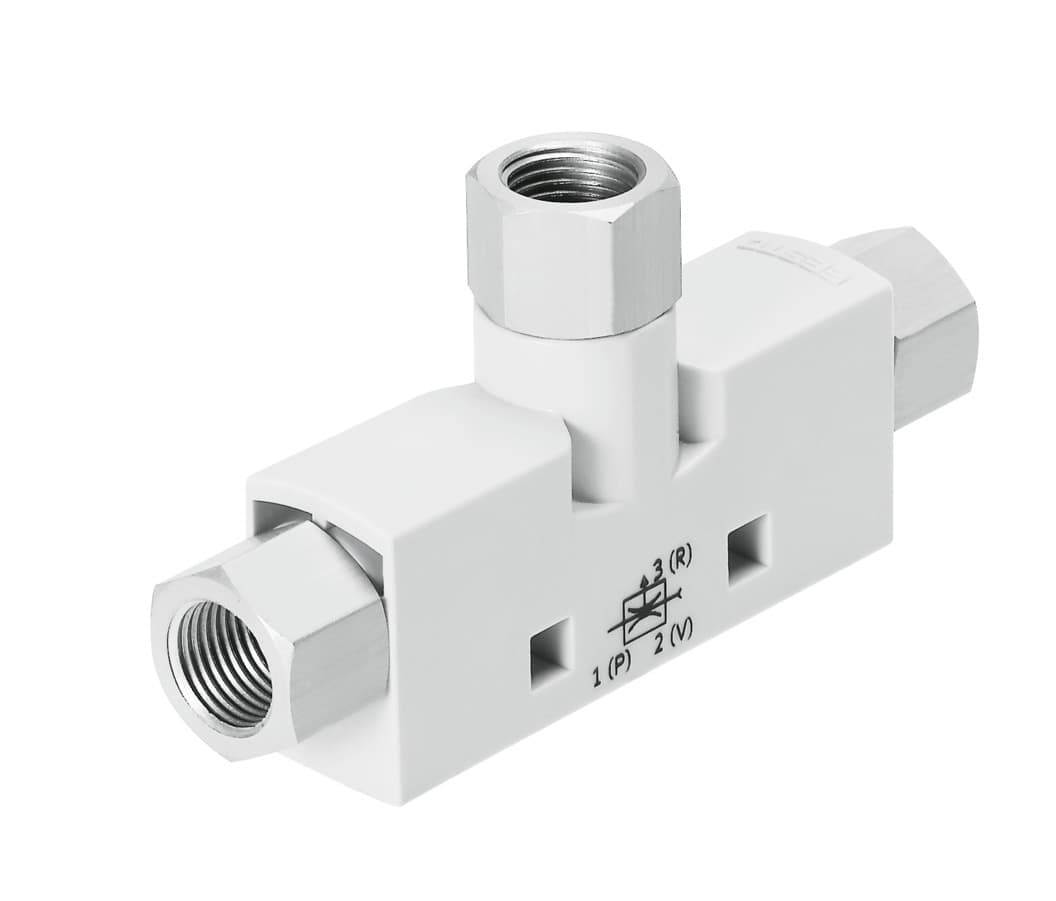

vn-05-n-t3-pi4-vi4-ri4
Product ID:7356
Updated: 2026/4/3
Key Features
- 1Deliver high vacuum performance up to 88% for demanding applications. 2、Install flexibly in any position with its T-shaped design and female thread. 3、Operate reliably within a 1 to 8 bar pressure range for versatility. 4、Save space with a compact 0.7 mm nominal size and 14 mm grid. 5、Ensure consistent quality using ISO 8573-1:2010 [7:4:4] compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
| Mounting position | Any | Ejector characteristics | High suction rate Inline |
| Structural design | T-shape | Symbol | 00991491 |
| Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 12l/min |
| Air supply time at nominal operating pressure | 1.57s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 22g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Vacuum connection | G1/8 | Material of connecting thread | Wrought aluminum alloy, anodized |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193627 |
Specifications may be subject to change without notice
