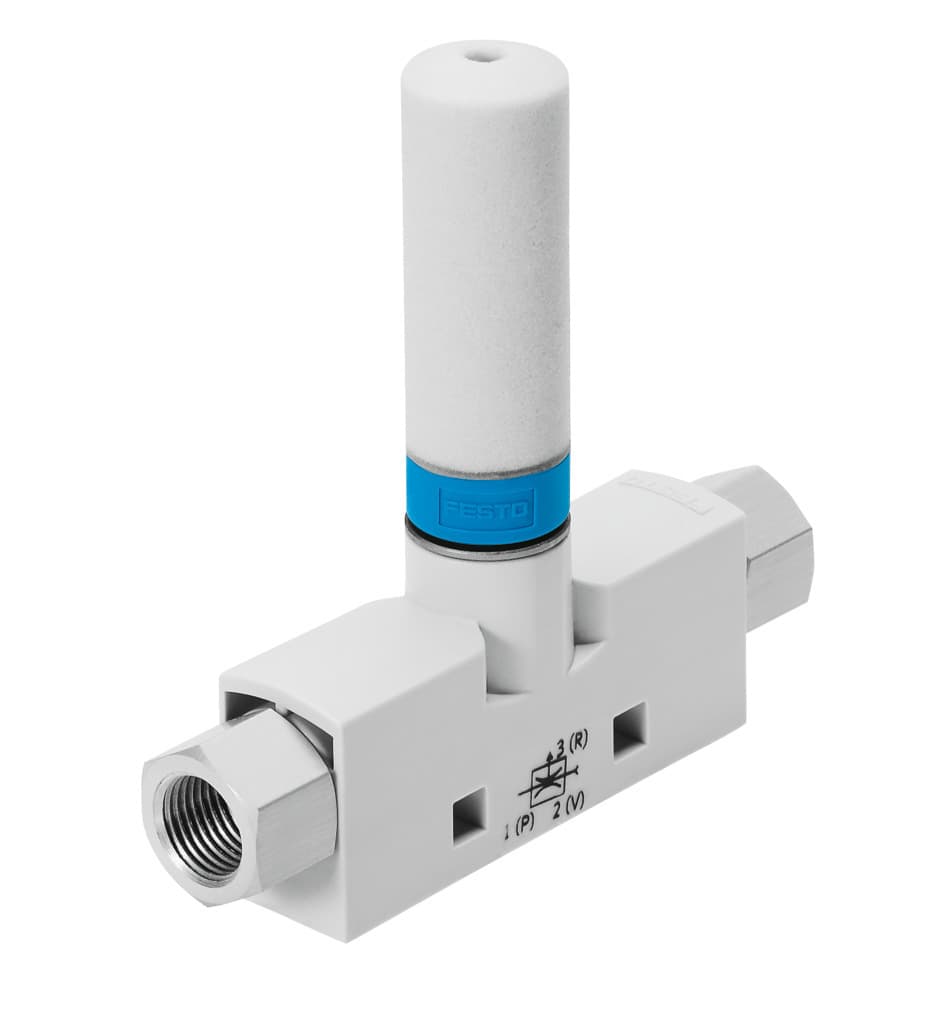

vn-05-n-t3-pi4-vi4-ro1
Product ID:7357
Updated: 2026/4/3
Key Features
- 1Achieve high vacuum levels for precise suction control in diverse applications. 2、Ensure reliable operation across 0°C to 60°C with robust construction. 3、Integrate easily using compact 0.45mm nozzle and 14mm grid. 4、Connect seamlessly via pneumatic and vacuum G1/8 ports. 5、Meet ISO 8573-1:2010 and VDMA24364 standards for quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High suction rate Inline | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991488 |
| Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 12l/min |
| Air supply time at nominal operating pressure | 1.57s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 48dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 24g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
| Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | PE |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193631 |
Specifications may be subject to change without notice
