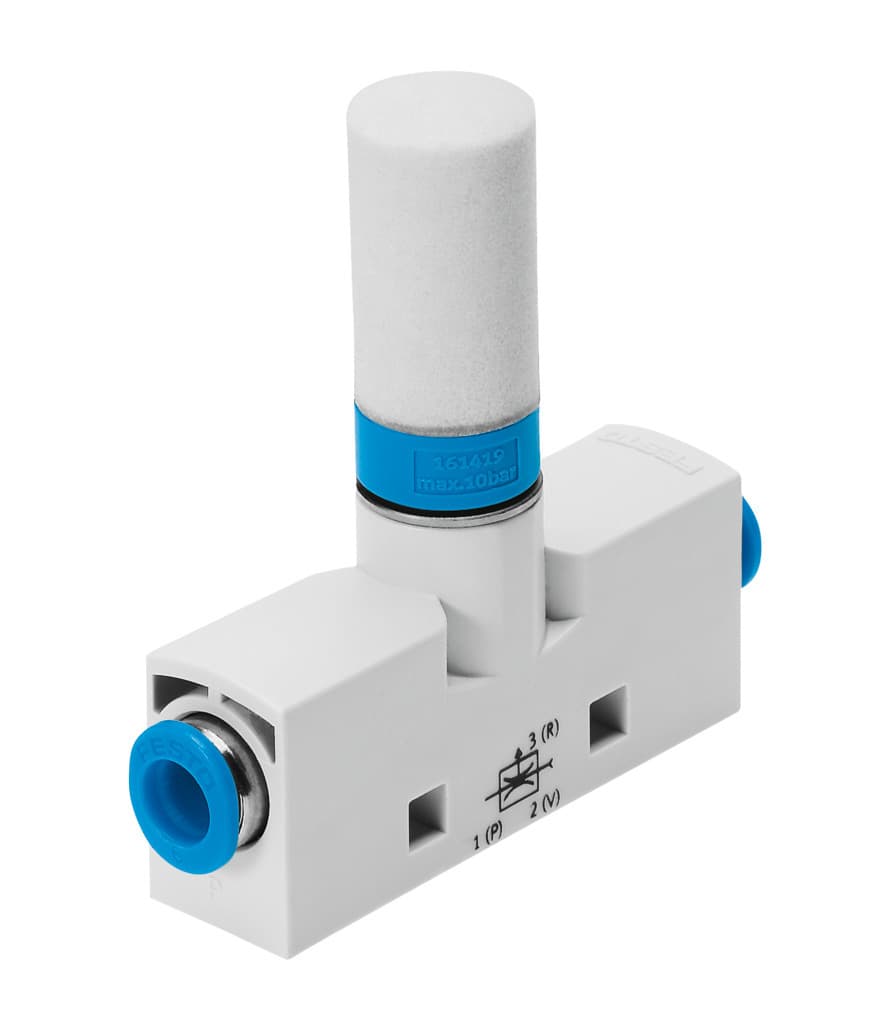

vn-05-n-t3-pq2-vq2-ro1
Product ID:7355
Updated: 2026/4/3
Key Features
- 1Ensure reliable operation with consistent vacuum performance. 2、Optimize energy use through an advanced pneumatic design. 3、Integrate seamlessly into diverse industrial systems and lines. 4、Reduce maintenance with durable construction and long service life. 5、Leverage full compatibility with other Festo automation components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High suction rate Inline | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991488 |
| Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 12l/min |
| Air supply time at nominal operating pressure | 1.57s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 48dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 24g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
| Material of connecting thread | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | PE |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193623 |
Specifications may be subject to change without notice
