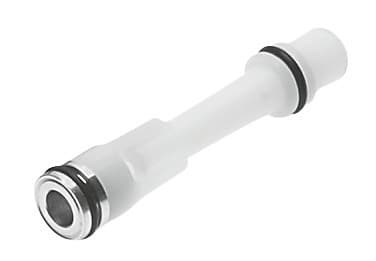

vn-07-h
Product ID:11543
Updated: 2026/4/3
Key Features
- 1Achieve 88% vacuum capacity for demanding high-vacuum applications. 2、Operate efficiently with a 16.2L/min suction rate from 1 to 8 bar. 3、Integrate easily using its compact, inline-type design for decentralized setups. 4、Resist moderate corrosion (CRC Class 2) in chemically challenging environments. 5、Ensure reliable sealing across 0°C to 60°C with Nitrile rubber (NBR) seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Mounting position | Any |
| Ejector characteristics | Standard High negative pressure | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Operating pressure for max. vacuum | 4.4bar |
| Max. vacuum | 92% | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 16.2l/min | Air supply time at nominal operating pressure | 1.67s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 1.65g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547695 |
Specifications may be subject to change without notice
