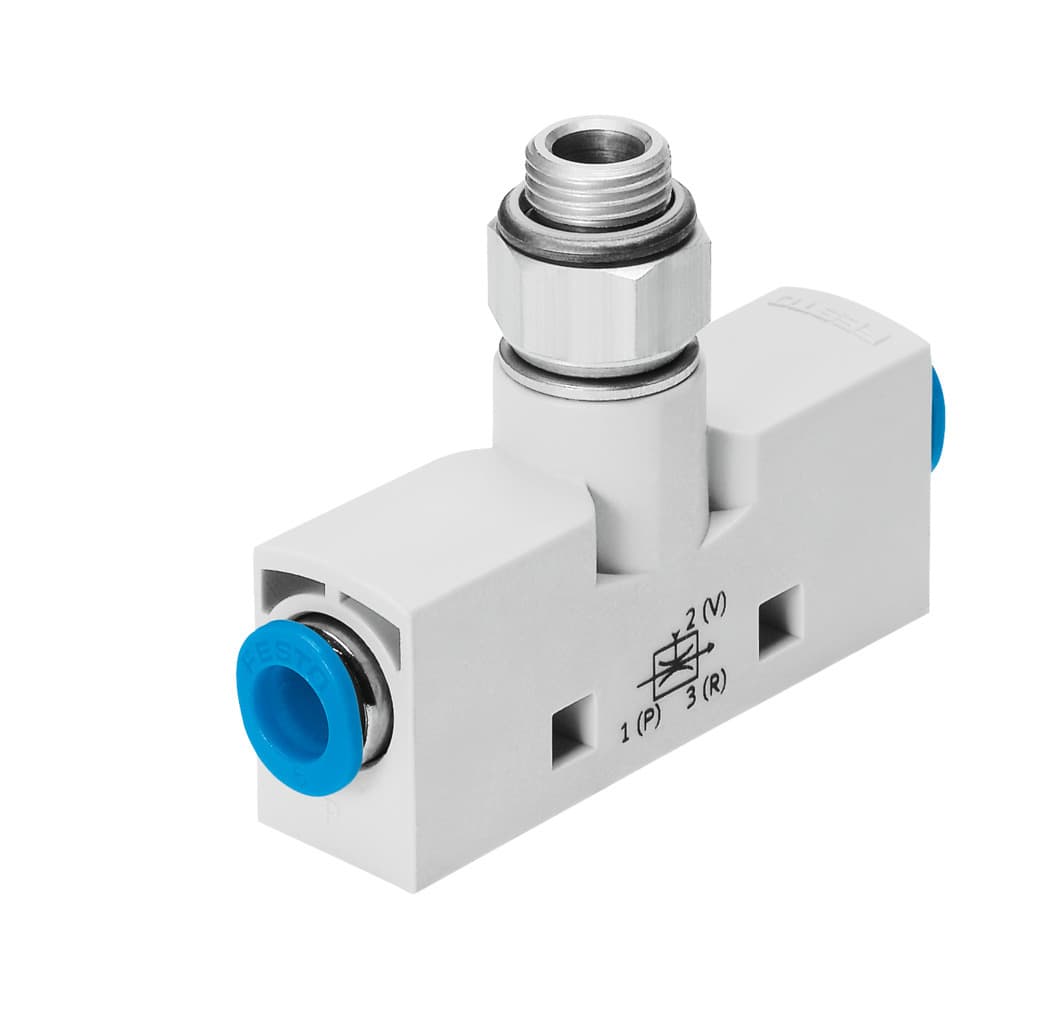

vn-07-h-t3-pq2-va4-rq2
Product ID:7306
Updated: 2026/7/4
Key Features
- 1Achieve high vacuum with a 0.7 mm Laval nozzle and 14 mm grid.
- 2Install flexibly using optional mounting positions in a T-shape design.
- 3Operate across a wide 1 to 8 bar pressure range for versatility.
- 4Withstand harsh conditions with corrosion-resistant, RoHS-compliant materials.
- 5Integrate easily into systems with a compact, lightweight 22-gram build.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
| Mounting position | Any | Ejector characteristics | High vacuum Standard |
| Structural design | T-shape | Symbol | 00991490 |
| Operating pressure for max. suction rate | 2.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 4.7bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 16l/min |
| Air supply time at nominal operating pressure | 1.9s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 24g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-6 |
| Vacuum connection | G1/8 | Material of connecting thread | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193517 |
Specifications may be subject to change without notice
