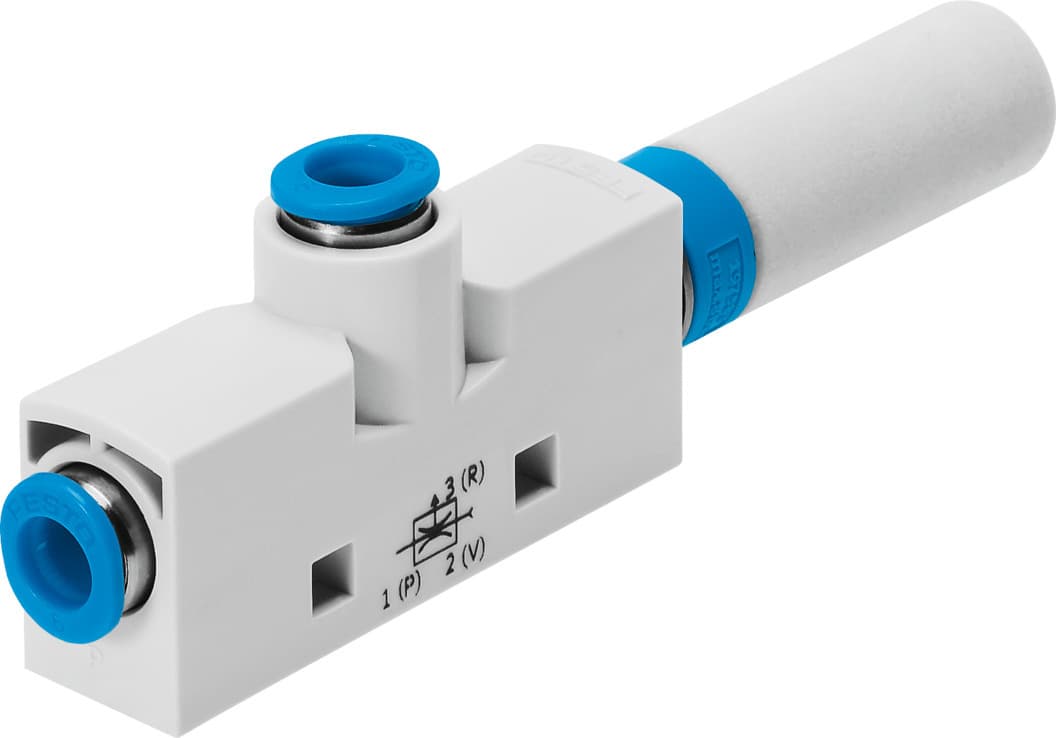

vn-07-h-t3-pq2-vq2-ro1-f1a
Product ID:181
Updated: 2026/4/3
Key Features
- 1Achieve 92% maximum vacuum for superior pick-and-place efficiency. 2、Fit into 14mm width T-slots in space-constrained automation cells. 3、Simplify installation with a pre-integrated solenoid valve for direct air connection. 4、Operate reliably across a wide 2 to 8 bar compressed air pressure range. 5、Maintain a 65 dB(A) low-noise operation for improved workplace environment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 2.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 4.7bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 16l/min |
| Air supply time at nominal operating pressure | 1.9s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Temperature of medium | 0°C 60°C | Noise level at nominal operating pressure | 64dB(A) |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 24g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | QS-6 | Material of connecting thread | POM |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Muffler material | PE | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8187683 |
Specifications may be subject to change without notice
