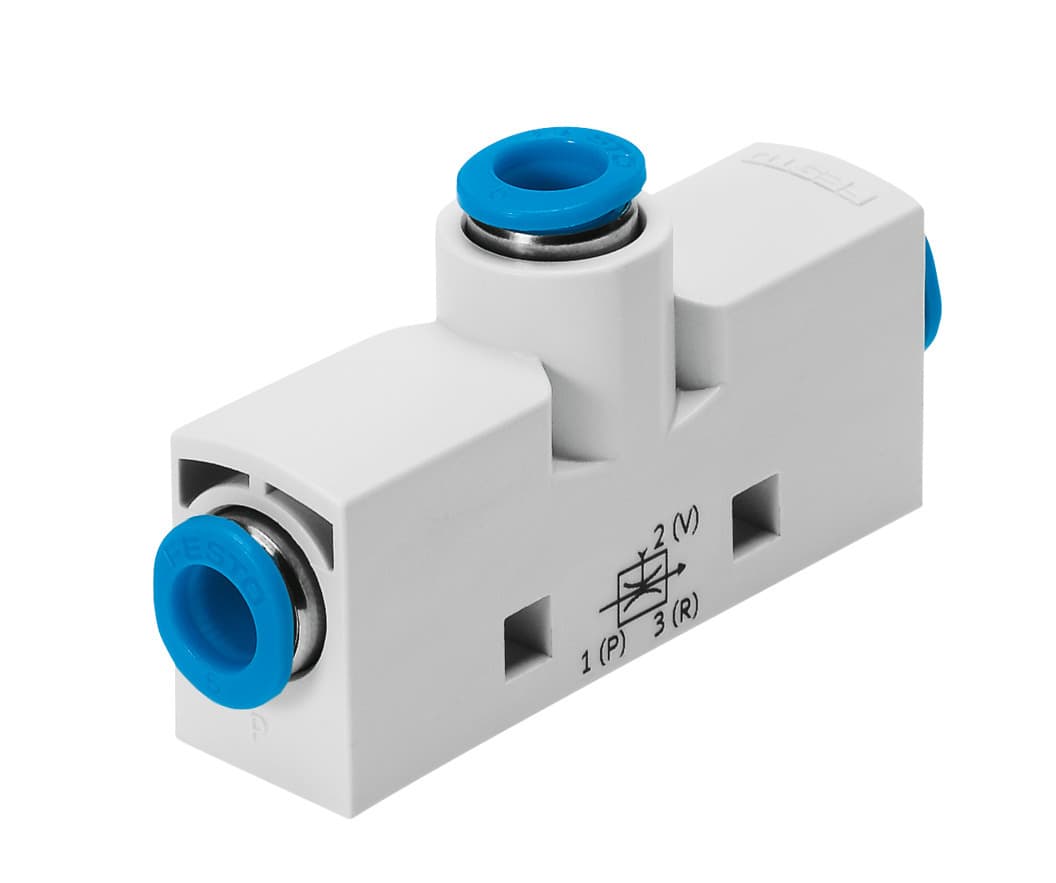

vn-07-h-t3-pq2-vq2-rq2
Product ID:7290
Updated: 2026/7/4
Key Features
- 1Generate high vacuum efficiently with a 0.7 mm Laval nozzle.
- 2Operate flexibly within a wide 1 to 8 bar pressure range.
- 3Install easily using standard pneumatic connections for quick setup.
- 4Ensure durability in harsh conditions with low-corrosion stress materials.
- 5Save space in compact applications thanks to its T-shape design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
| Mounting position | Any | Ejector characteristics | High vacuum Standard |
| Structural design | T-shape | Symbol | 00991490 |
| Operating pressure for max. suction rate | 2.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 4.7bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 16l/min |
| Air supply time at nominal operating pressure | 1.9s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 22g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-6 |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193479 |
Specifications may be subject to change without notice
