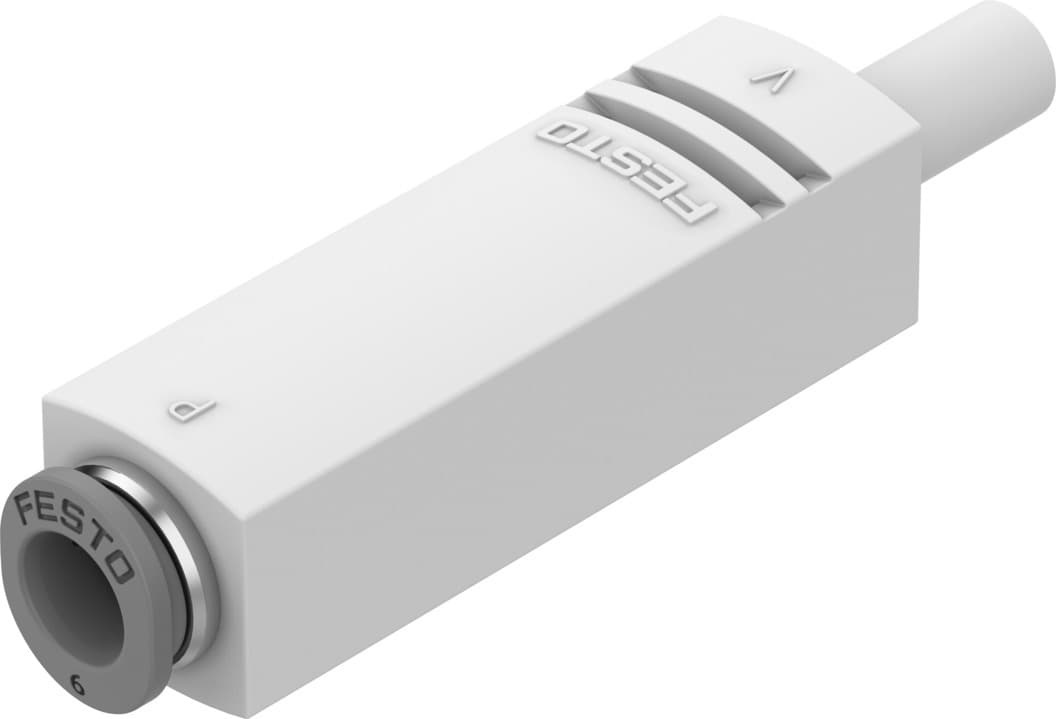

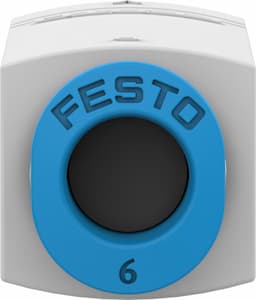

vn-07-m-i3-pq2-vt2
Product ID:7324
Updated: 2026/4/3
Key Features
- 1Operate within a wide 1-8 bar pressure range for versatile applications. 2、Function reliably in ambient temperatures from 0 to +60°C. 3、Ensure performance with ISO 8573-1:2010 compressed air compliance. 4、Resist corrosion (CRC 1 or 2) for durability in harsh environments. 5、Integrate easily with multiple pneumatic and vacuum connection options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 13mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
| Air supply time at nominal operating pressure | 2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 12g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | Push-in sleeve QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193556 |
Specifications may be subject to change without notice
