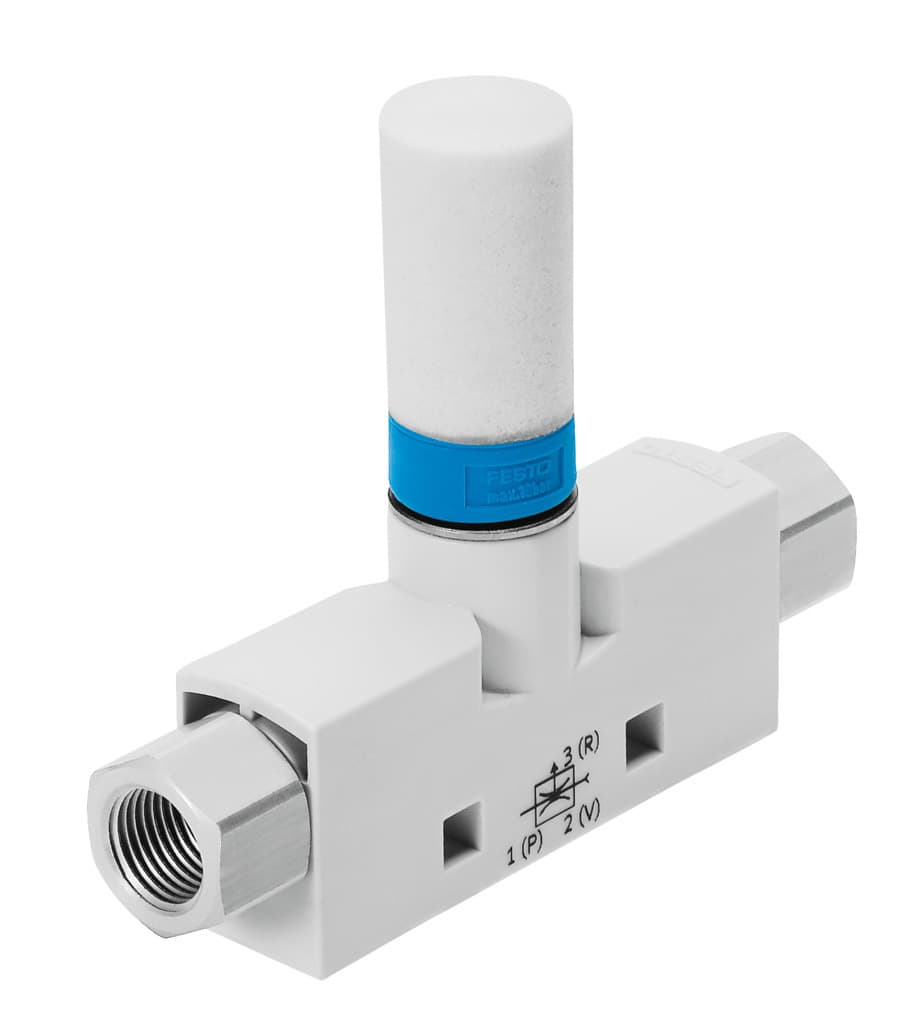

vn-07-m-t3-pi4-vi4-ro1
Product ID:7319
Updated: 2026/4/3
Key Features
- 1Deliver high vacuum performance up to 88% for efficient operations. 2、Feature a compact 0.7mm nozzle and 14mm grid for tight spaces. 3、Mount flexibly in various positions including through-hole options. 4、Ensure long-term reliability with low corrosion stress design. 5、Operate efficiently with ISO 8573-1:2010 air, cutting costs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Inline | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991488 |
| Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
| Air supply time at nominal operating pressure | 2.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 59dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 24g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
| Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | PE |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193549 |
