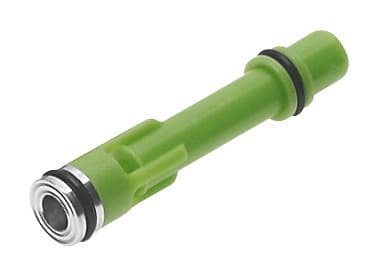

vn-10-h
Product ID:11545
Updated: 2026/7/13
Key Features
- 1Boost efficiency with high vacuum ejector characteristics.
- 2Simplify installation using the compact T-shape design.
- 3Reduce noise via the integrated open silencer.
- 4Ensure reliability by meeting VDMA corrosion resistance standards.
- 5Minimize maintenance with a simple mounting process.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Mounting position | Any |
| Ejector characteristics | Standard High negative pressure | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Operating pressure for max. vacuum | 3.5bar |
| Max. vacuum | 93% | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 21.8l/min | Air supply time at nominal operating pressure | 1.02s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 1.65g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547697 |
