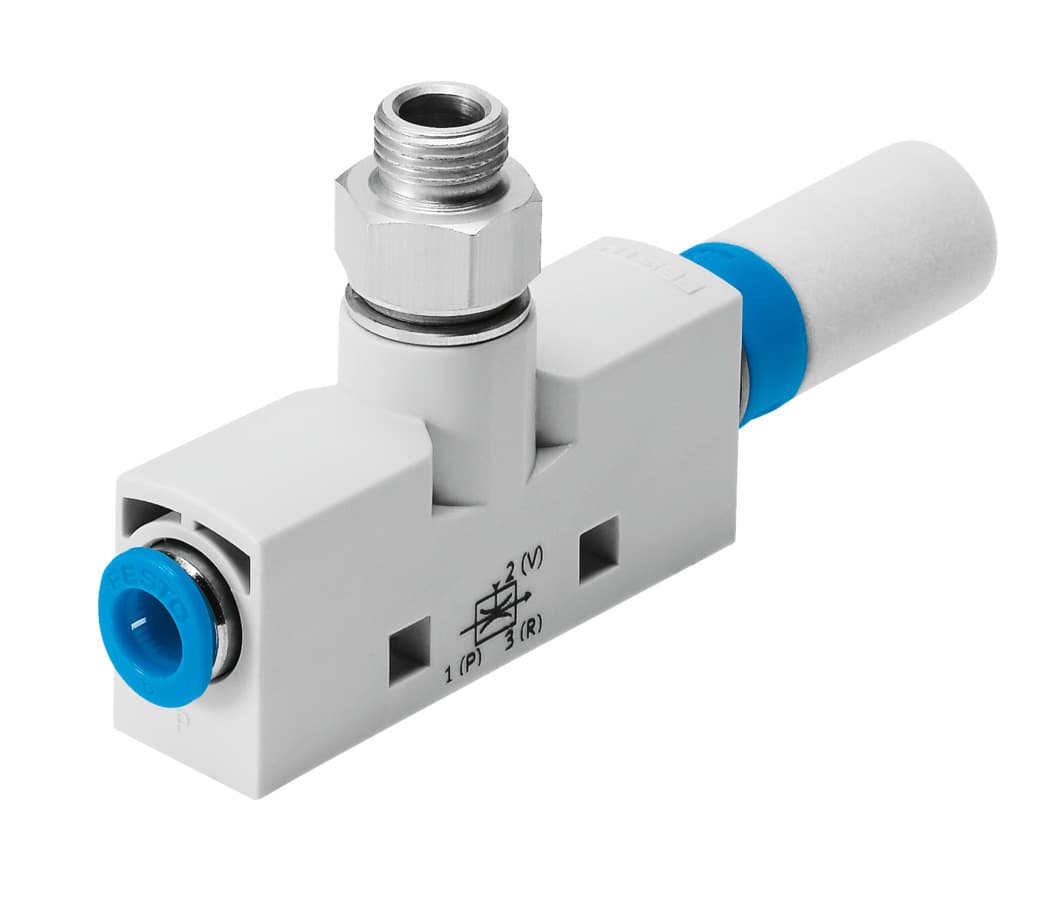

vn-10-h-t3-pq2-va4-ro1
Product ID:7311
Updated: 2026/4/3
Key Features
- 1Ensure efficient vacuum generation with a high-performance ejector. 2、Integrate easily into diverse systems with versatile mounting positions. 3、Enhance performance using an open muffler construction type. 4、Save space with a compact 0.95mm width and 14mm dimension. 5、Achieve reliable, long-term operation with quality-built components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 3.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 4.5bar | Max. vacuum | 89% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 25l/min |
| Air supply time at nominal operating pressure | 1.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 74dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 26g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
| Material of connecting thread | Wrought aluminum alloy Brass, nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | PE |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193528 |
Specifications may be subject to change without notice
