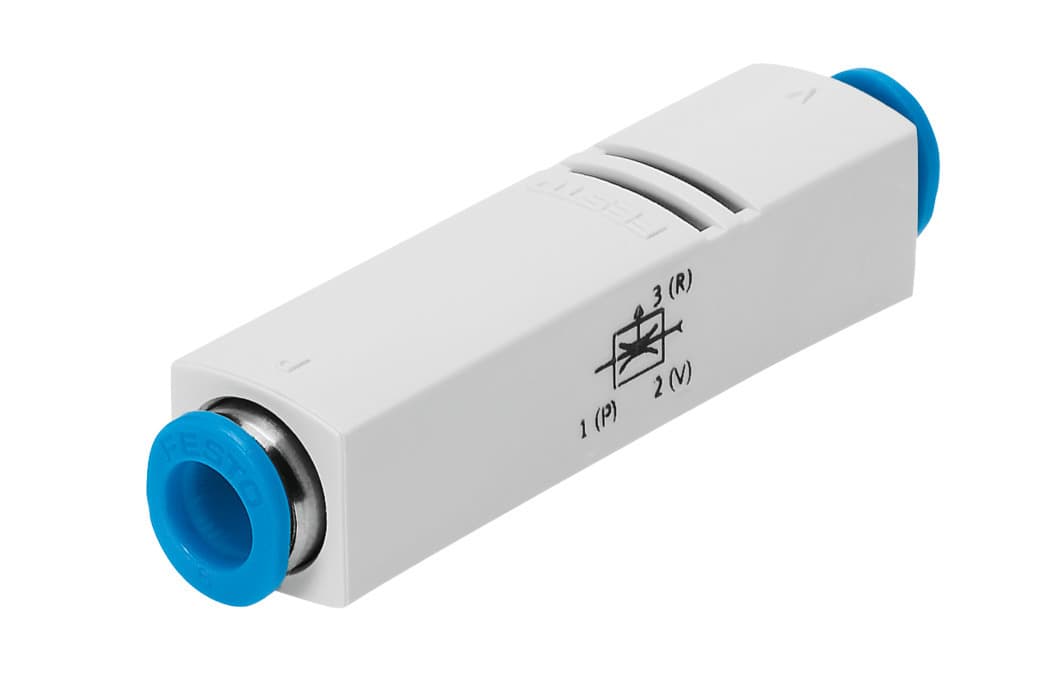

vn-10-m-i3-pq2-vq2
Product ID:7322
Updated: 2026/4/3
Key Features
- 1Achieve 86% vacuum capacity for demanding applications. 2、Generate a 28L/min suction rate for efficient material handling. 3、Install easily with the integrated plug connector to save time. 4、Utilize the 0.95mm Laval nozzle for precise vacuum control. 5、Deploy the compact inline design in space-constrained systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Width dimension | 13mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 5bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 28l/min |
| Air supply time at nominal operating pressure | 0.96s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 23g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193554 |
