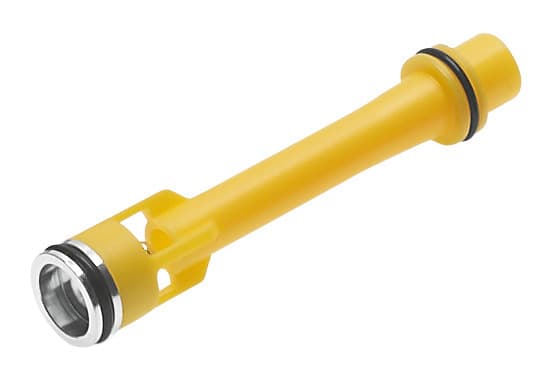

vn-14-h
Product ID:11547
Updated: 2026/4/3
Key Features
- 1Deliver 48.8 L/min suction for efficient vacuum generation. 2、Reduce noise to 69 dB with an integrated open muffler. 3、Ensure maintenance-free operation via solenoid valve shut-off. 4、Meet RoHS standards for environmental compliance and safety. 5、Offer installation flexibility with through-hole and H-rail mounts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
| Ejector characteristics | Standard High negative pressure | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Operating pressure for max. vacuum | 3.5bar |
| Max. vacuum | 92% | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 48.8l/min | Air supply time at nominal operating pressure | 0.48s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 3.75g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547699 |
Specifications may be subject to change without notice
