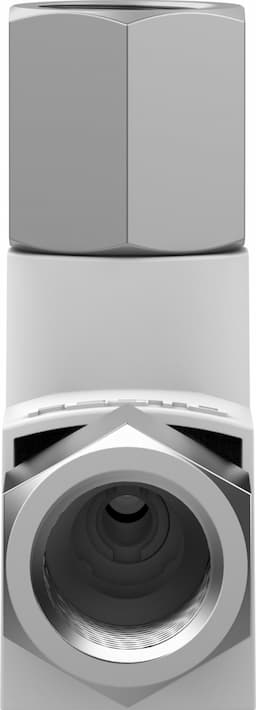

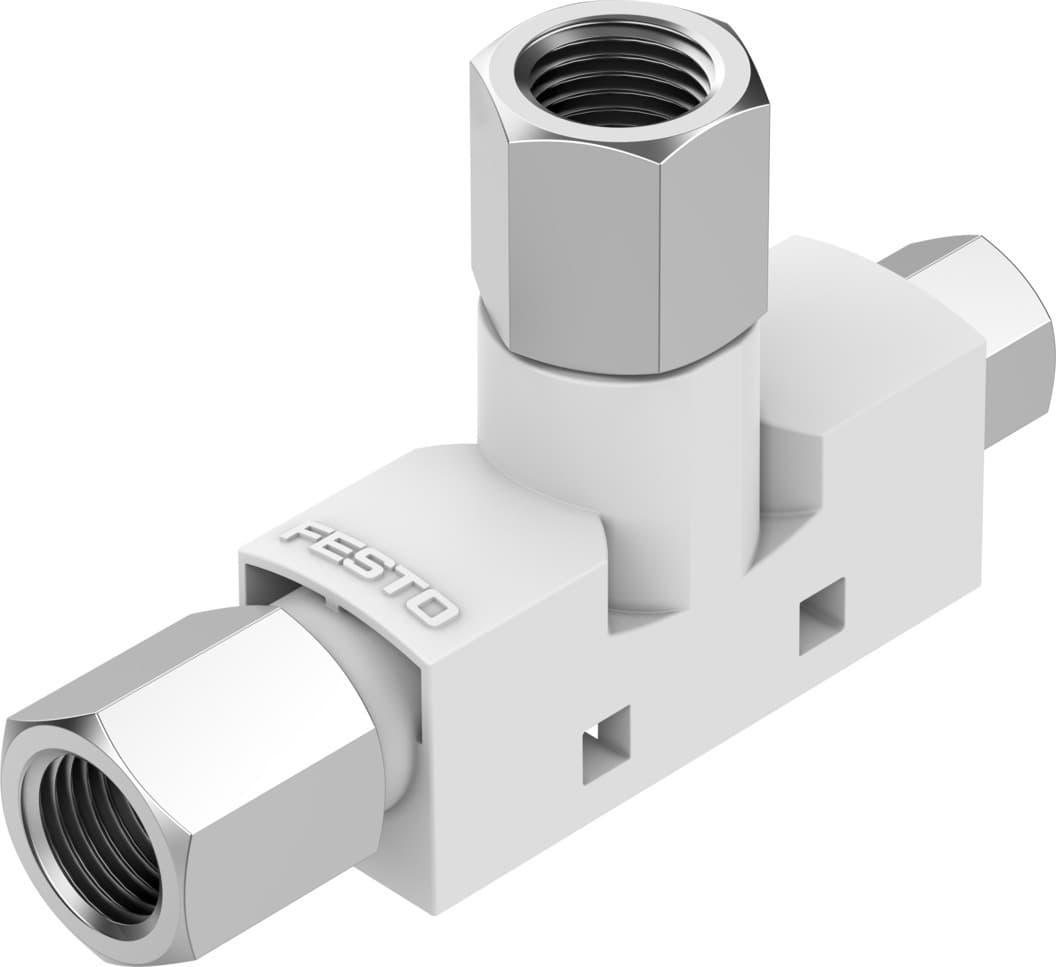

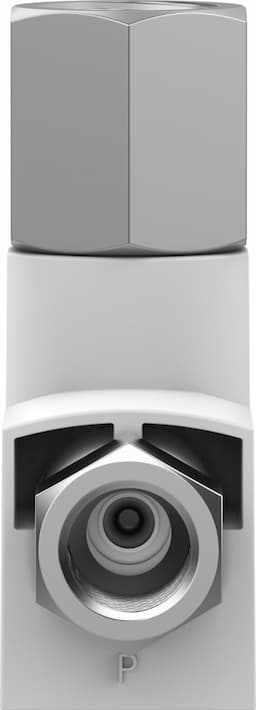

vn-14-h-t4-pi4-vi5-ri5
Product ID:7301
Updated: 2026/4/3
Key Features
- 1Deliver high vacuum performance for efficient industrial operations. 2、Feature a T-form design and 18 mm grid for versatile configuration. 3、Install in any position to simplify system integration. 4、Achieve a maximum suction rate of 51.6 l/min. 5、Operate with ISO8573-1:2010 air for reliable service life.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Mounting position | Any | Ejector characteristics | High vacuum Standard |
| Structural design | T-shape | Symbol | 00991490 |
| Operating pressure for max. suction rate | 5.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 51.6l/min |
| Air supply time at nominal operating pressure | 0.5s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 36g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/4 |
| Vacuum connection | G1/4 | Material of connecting thread | Wrought aluminum alloy, anodized |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193502 |
Specifications may be subject to change without notice
