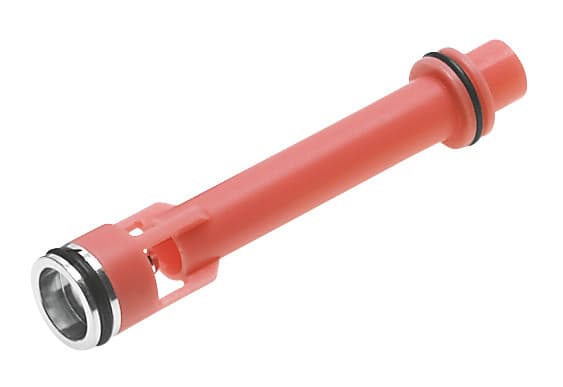

vn-14-l
Product ID:11548
Updated: 2026/4/3
Key Features
- 1Deliver high suction rates for efficient particle removal. 2、Feature standard ejector characteristics for reliable performance. 3、Integrate a compact 1.4mm nozzle and 18mm grid. 4、Offer optional mounting positions for flexible installation. 5、Ensure technical precision for demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
| Ejector characteristics | Standard High suction volume | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 92.6l/min | Air supply time at nominal operating pressure | 0.31s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 3.75g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547700 |
Specifications may be subject to change without notice
