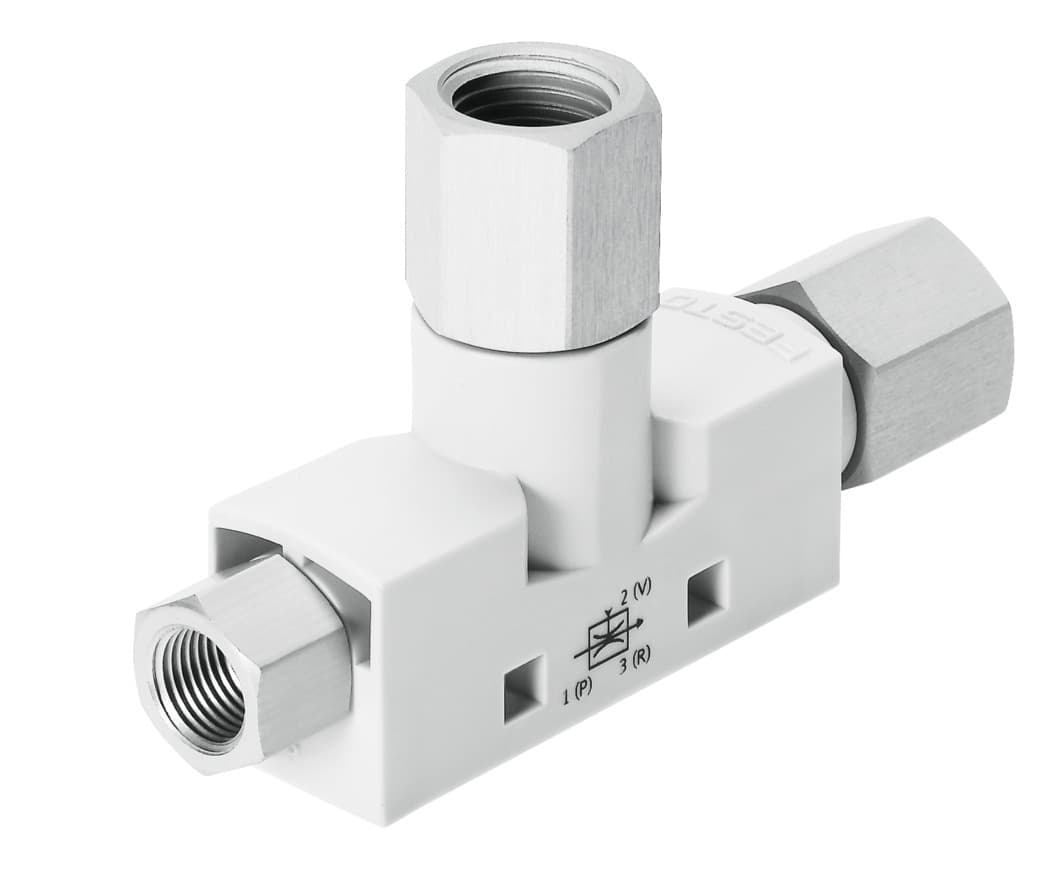

vn-14-l-t4-pi4-vi5-ri5
Product ID:7339
Updated: 2026/4/3
Key Features
- 1Achieve high suction rates for efficient lithium-ion battery handling. 2、Utilize the standard ejector characteristics for reliable performance. 3、Feature a 1.4mm Laval nozzle designed for optimal airflow. 4、Enable precise automation in demanding production environments. 5、Reduce maintenance costs with a robust and durable design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Mounting position | Any | Ejector characteristics | High suction rate Standard |
| Structural design | T-shape | Symbol | 00991490 |
| Operating pressure for max. suction rate | 8bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 90l/min |
| Air supply time at nominal operating pressure | 0.25s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 36g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/4 |
| Vacuum connection | G1/4 | Material of connecting thread | Wrought aluminum alloy, anodized |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193585 |
Specifications may be subject to change without notice
