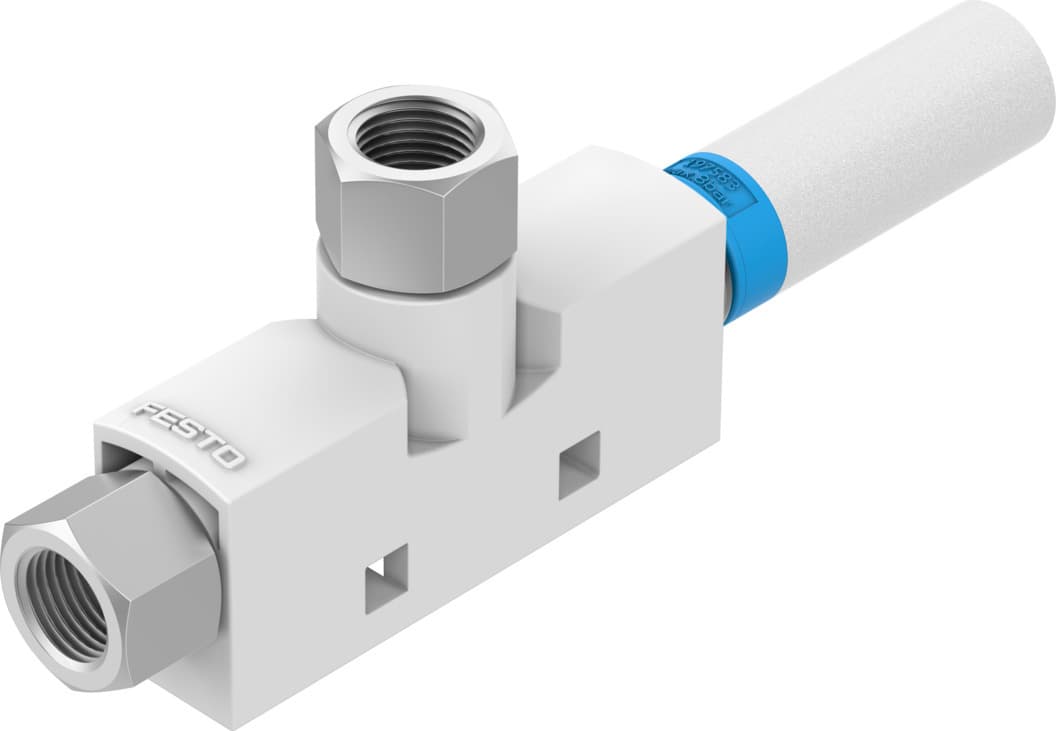

vn-14-l-t4-pi4-vi5-ro2
Product ID:11554
Updated: 2026/4/3
Key Features
- 1Deliver 88% maximum vacuum at 6 bar operating pressure. 2、Integrate easily with a compact 1.4mm nozzle and 18mm grid. 3、Ensure durability using anodized aluminum and POM-reinforced housing. 4、Reduce noise and installation complexity with an open silencer design. 5、Mount flexibly in T-shape for versatile application setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 8bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 90l/min |
| Air supply time at nominal operating pressure | 0.25s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 77dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 40g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/4 |
| Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | Die-cast aluminum POM PU foam |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 547708 |
