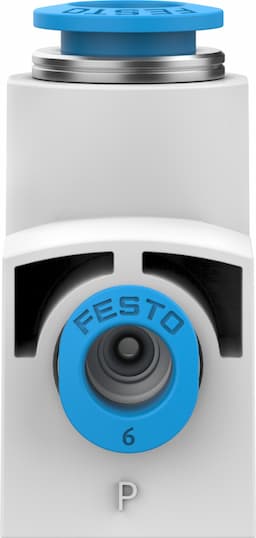

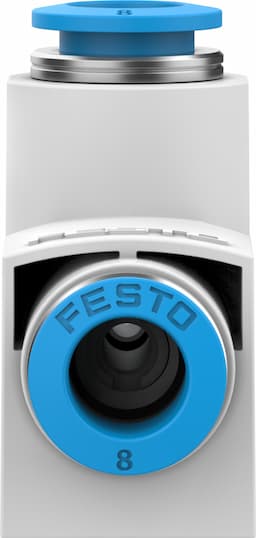

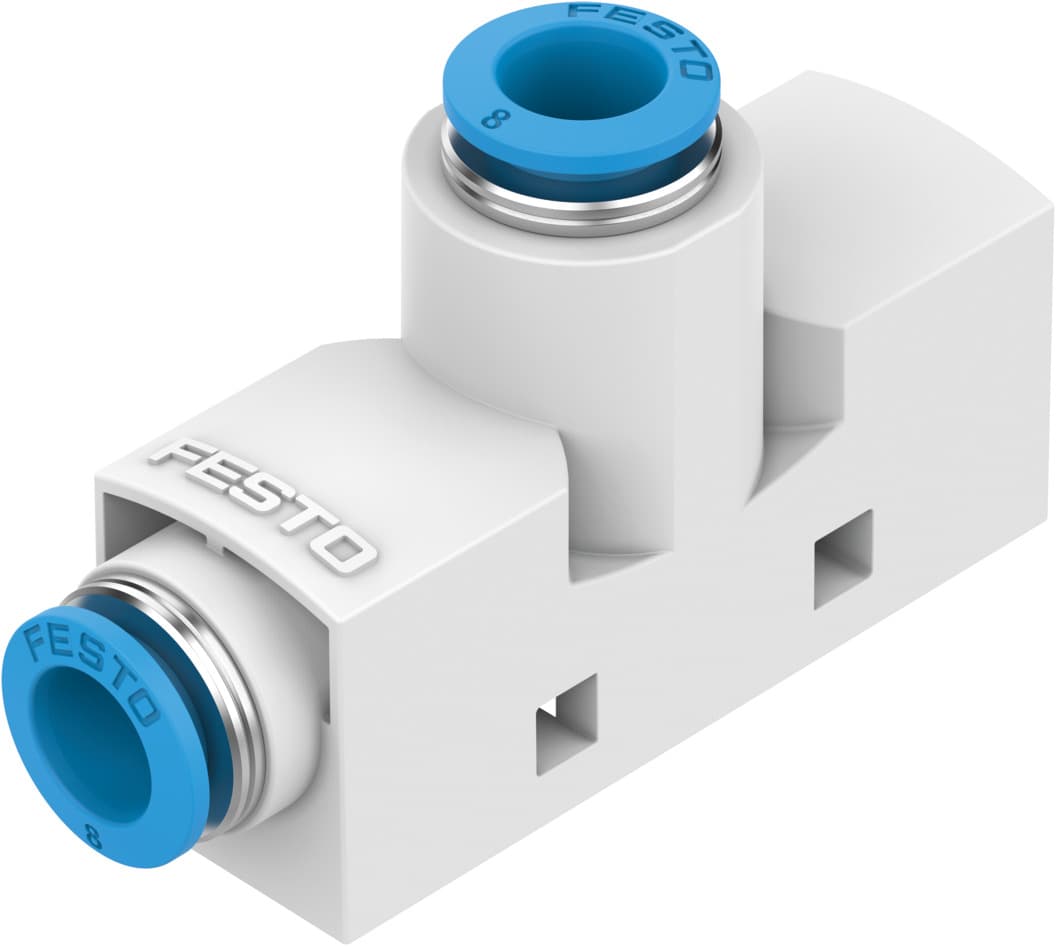

vn-14-l-t4-pq2-vq3-rq3
Product ID:7328
Updated: 2026/7/19
Key Features
- 1Achieve high suction rates with the 1.4mm Laval nozzle.
- 2Optimize airflow using the efficient T-shaped configuration.
- 3Connect flexibly with two integrated 8mm ports.
- 4Handle diverse applications requiring standard or high suction.
- 5Rely on Festo's quality for durable and reliable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Mounting position | Any | Ejector characteristics | High suction rate Standard |
| Structural design | T-shape | Symbol | 00991490 |
| Operating pressure for max. suction rate | 8bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 90l/min |
| Air supply time at nominal operating pressure | 0.25s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 27g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-8 |
| Vacuum connection | QS-8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193565 |
Specifications may be subject to change without notice
