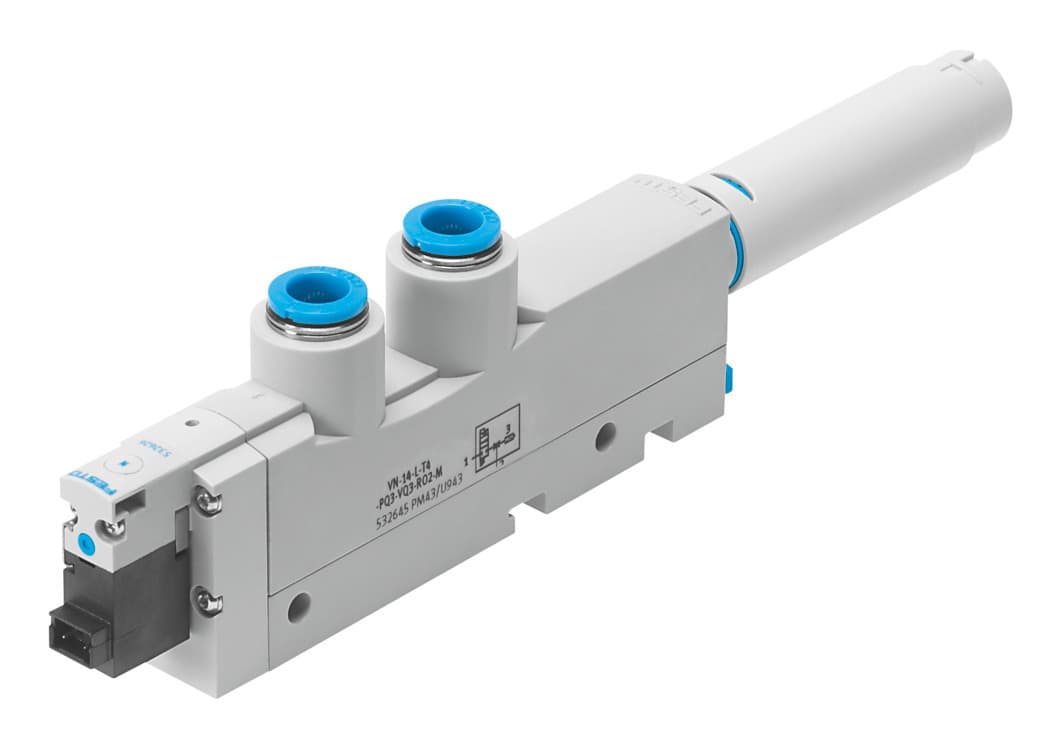

vn-14-l-t4-pq3-vq3-ro2-m
Product ID:9563
Updated: 2026/4/3
Key Features
- 1Ensure reliable automation with the Festo VN-14-L-T4-PQ3-VQ3-RO2-M. 2、Integrate easily using its compact, T-shape design. 3、Reduce maintenance with robust construction and quality materials. 4、Support versatile applications from pneumatics to industrial processes. 5、Trust Festo's innovation for exceptional performance and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | Standard High suction volume | Manual override | Non-detenting |
| Integrated function | Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |
| Symbol | 00991492 | Valve function | 2/2 |
| Operating pressure for max. suction rate | 5bar | Operating pressure | 2bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 92.6l/min |
| Air supply time at nominal operating pressure | 0.32s | DC operating voltage range | 21.6V 26.4V |
| Electrical power consumption | 1.2W | Duty cycle | 100% |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 69dB(A) |
| Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
| Product weight | 98g | Electrical connection | Plug |
| Type of mounting | With through-hole With H-rail With accessories | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-8 |
| Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | PA-reinforced POM-reinforced | Muffler material | Wrought aluminum alloy POM PU foam |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532645 |
Specifications may be subject to change without notice
