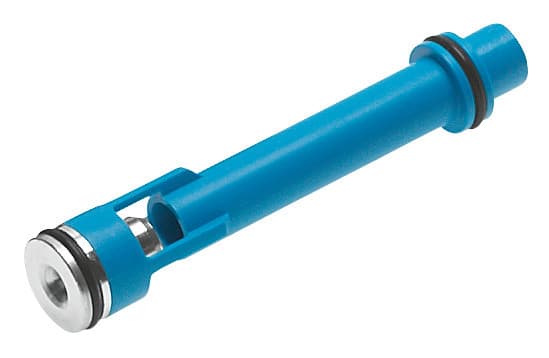

vn-20-h
Product ID:11549
Updated: 2026/4/3
Key Features
- 1Generate precise vacuum with a 2 mm Laval nozzle. 2、Ensure robust performance via a 24 mm grid dimension. 3、Reduce operational noise using an open silencer design. 4、Install flexibly with optional mounting positions. 5、Achieve high vacuum ejector performance in demanding applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 2mm | Mounting position | Any |
| Ejector characteristics | Standard High negative pressure | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Operating pressure for max. vacuum | 3.5bar |
| Max. vacuum | 92% | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 98l/min | Air supply time at nominal operating pressure | 0.23s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 3.75g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547701 |
