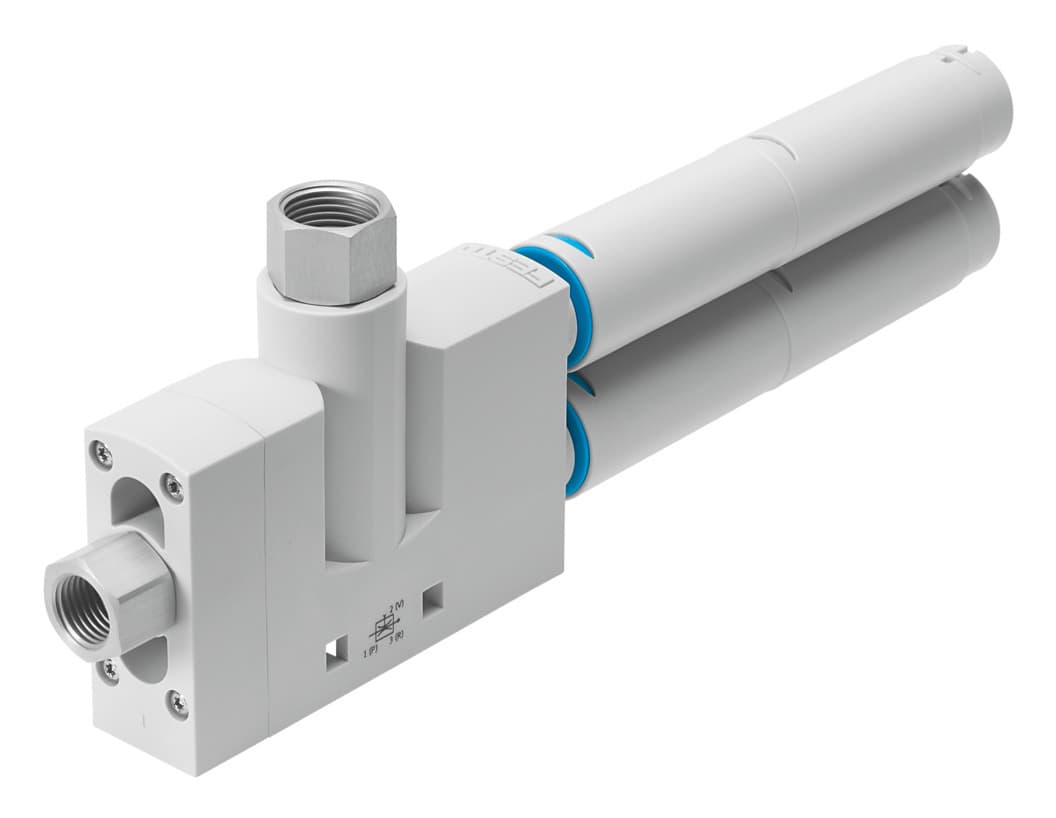

vn-20-h-t6-pi5-vi6-ro2
Product ID:8979
Updated: 2026/7/16
Key Features
- 1Deliver high vacuum performance with a 2 mm Laval nozzle.
- 2Feature a T-shaped design for flexible assembly positions.
- 3Operate reliably within a 1 to 8 bar pressure range.
- 4Provide efficient airflow with a 98 l/min suction rate.
- 5Integrate universally into various pneumatic systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 2mm | Width dimension | 24mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 2bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 92% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 98l/min |
| Air supply time at nominal operating pressure | 0.2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 63dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.8Nm | Product weight | 183g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G3/8 |
| Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | Die-cast aluminum POM PU foam |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 526141 |
