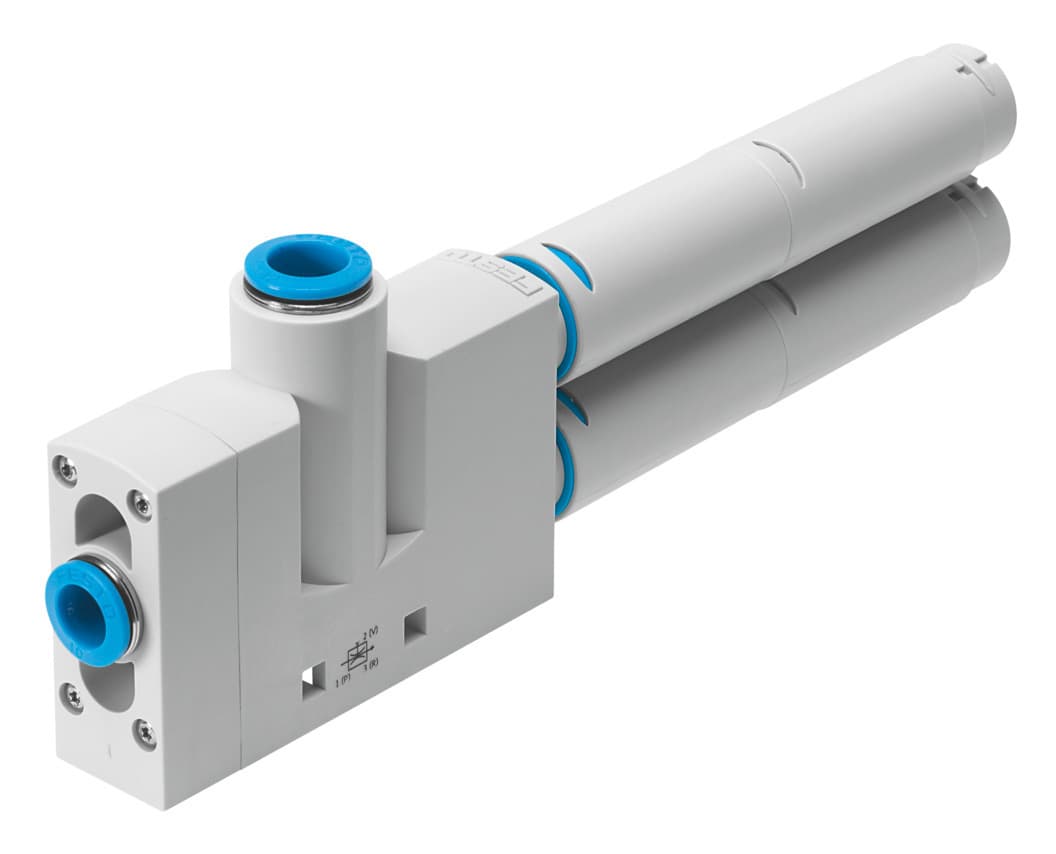

vn-20-h-t6-pq4-vq5-ro2
Product ID:7296
Updated: 2026/7/4
Key Features
- 1Deliver high vacuum performance with a 2 mm Laval nozzle.
- 2Mount in any position with the open silencer design.
- 3Ensure continuous operation for minimal maintenance needs.
- 4Integrate easily into existing automation systems.
- 5Optimize suction rates with high vacuum ejector characteristics.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 2mm | Width dimension | 24mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 2bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 92% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 98l/min |
| Air supply time at nominal operating pressure | 0.2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 63dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.8Nm | Product weight | 182g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-12 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Muffler material | Die-cast aluminum POM PU foam | Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193495 |
