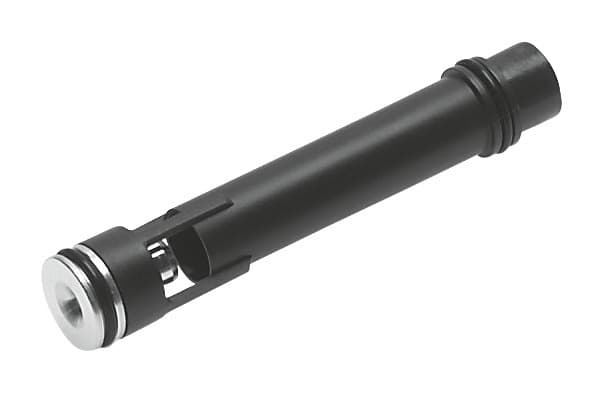

vn-20-l
Product ID:11550
Updated: 2026/7/13
Key Features
- 1Deliver a high suction rate of 184.4L/min for efficient vacuum generation.
- 2Feature an inline-type and 2mm de Laval nozzle for compact installations.
- 3Operate within a pressure range of +1 to +8 bar for flexibility.
- 4Utilize Nitrile rubber (NBR) static seals for moderate corrosion resistance.
- 5Enable decentralized vacuum generation in processes like battery production.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 2mm | Mounting position | Any |
| Ejector characteristics | Standard High suction volume | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 184.4l/min | Air supply time at nominal operating pressure | 0.17s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 3.75g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547702 |
Specifications may be subject to change without notice
