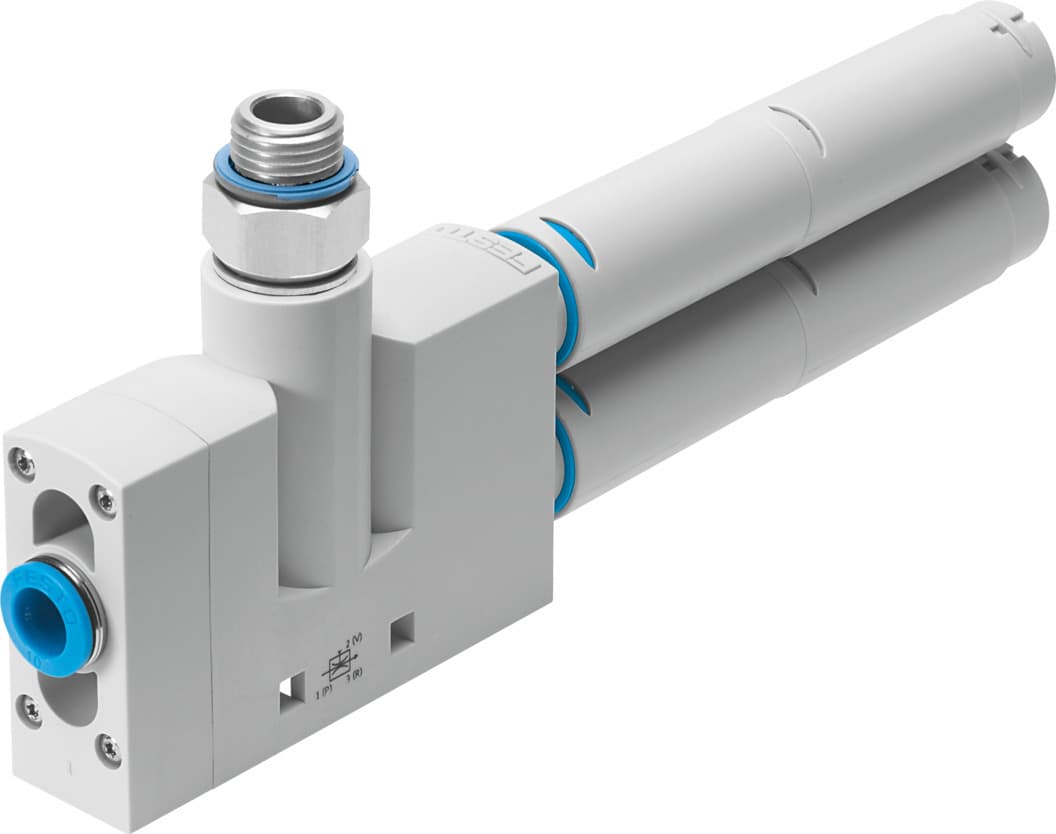

vn-30-l-t6-pq4-va5-ro2
Product ID:8978
Updated: 2026/7/16
Key Features
- 1Deliver a high suction rate of 339 liters per minute for demanding tasks.
- 2Feature a compact 3mm nominal width and 24mm grid for space-saving.
- 3Operate quietly at 70 dB(A) with an open silencer design.
- 4Mount in any position for flexible system integration.
- 5Withstand low corrosion stress with CRC 1 rating for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 3mm | Width dimension | 24mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 339l/min |
| Air supply time at nominal operating pressure | 0.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 70dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.8Nm | Product weight | 189g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/4 |
| Material of connecting thread | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | Die-cast aluminum POM PU foam |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 526136 |
Specifications may be subject to change without notice
