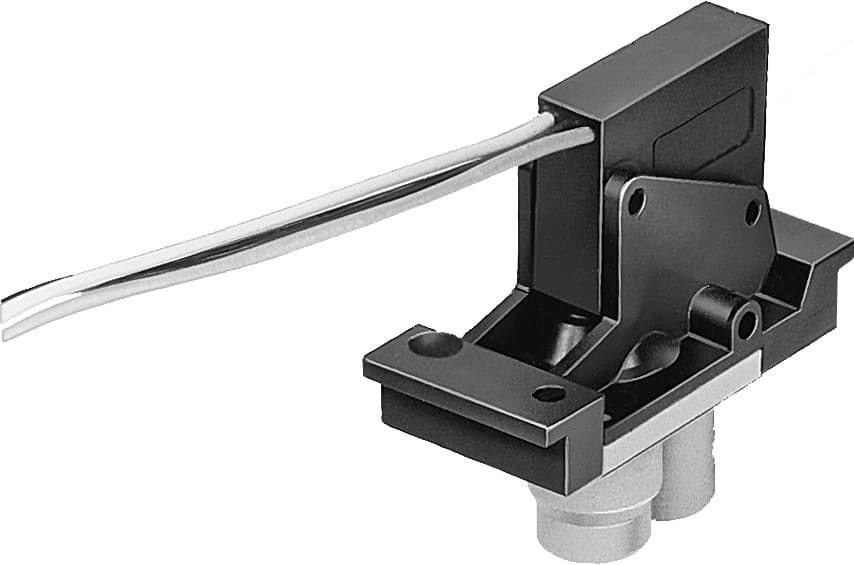

vpe-1/8-sw
Product ID:874
Updated: 2026/4/3
Key Features
- 1Ensure precise switching with points at -0.25 bar and ≤0.1 bar. 2、Operate with compressed air and vacuum from -0.95 to 0.25 bar. 3、Install in any position using throughway bores for fastening. 4、Rely on robust PA, POM, Steel, and VMQ construction. 5、Meet safety standards with CE marking and 1 Hz max frequency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00995409 |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Measured variable | Relative pressure | Method of measurement | Pneumatic/electric pressure transducer |
| Operating pressure | -0.95bar 0bar | Max. overload pressure | 1bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Switching output | Contact-based | Switching function | Threshold value with fixed hysteresis |
| Switching element function | Changeover switch | Switch-on point | -0.25bar |
| Switch-off point | 0.1bar | Max. switching frequency | 1Hz |
| Minimum load current | 100mA | Operating voltage range AC | 12V 250V |
| DC operating voltage range | 12V 250V | Utilization category for inductive load | AC-14 DC-13 |
| Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 3 connecting wires |
| Electrical connection 1, connection technology | Open end | Cable length | 0.5m |
| Material of cable sheath | PVC | Type of mounting | Optionally: On mounting frame 1n |
| Mounting position | Any | Pneumatic connection | G1/8 |
| Product weight | 38g | Housing material | PA-reinforced POM Steel VMQ (silicone) |
| Switching contact material | Silver | Electrical connection material | Tin-plated |
| Diaphragm material | Chloroprene rubber | Setting options | Permanently set |
| Degree of protection | IP67 | Insulation voltage | 2000V |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
| Manufacturer ID | 12593 |
Specifications may be subject to change without notice
