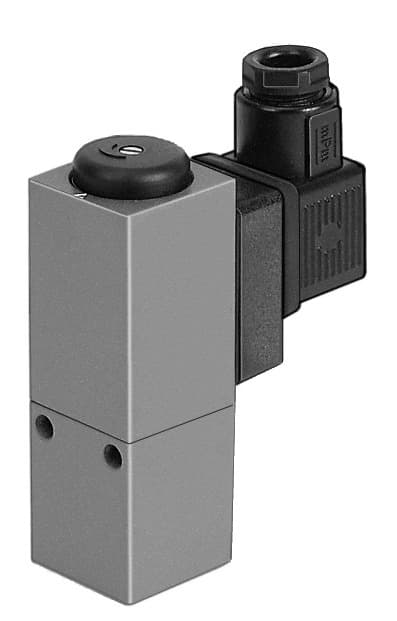

vpev-1/8
Product ID:2191
Updated: 2026/4/3
Key Features
- 1Ensure precise vacuum level control for industrial applications. 2、Operate effectively within a wide -1 to 1.6 bar range. 3、Withstand harsh conditions with reliable IP65-rated durability. 4、Simplify installation with G 1/8 port and bracket mounting. 5、Apply versatility for vacuum/pressure needs and pump control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991471 |
| Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | -14.5psi 23.2psi |
| Operating pressure | -1bar 1.6bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Temperature of medium | -20°C 80°C |
| Ambient temperature | -20°C 80°C | Switching element function | Changeover switch |
| Max. switching frequency | 3Hz | Max. switching output voltage AC | 250V |
| Max. switching output voltage DC | 125V | Max. output current | 5000mA |
| Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V | Utilization category for inductive load | AC-14 DC-13 |
| Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | Form A Plug as per DIN 43650 Rectangular design |
| Type of mounting | With through-hole | Mounting position | Any |
| Pneumatic connection | G1/8 | Product weight | 240g |
| Housing material | Wrought aluminum alloy | Switching contact material | Silver |
| Switching status indication | LED yellow | Setting range threshold value | -0.95bar -0.2bar |
| Setting range threshold value after conversion | 0.16bar 1.6bar | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Manufacturer ID | 150261 |
Specifications may be subject to change without notice
