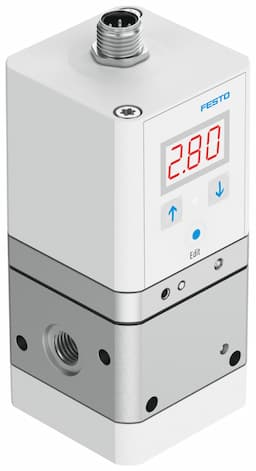

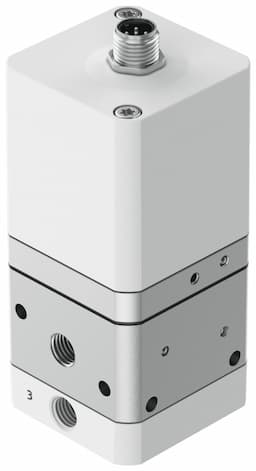

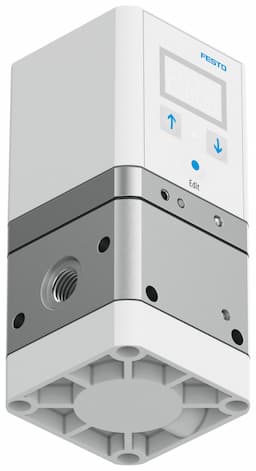

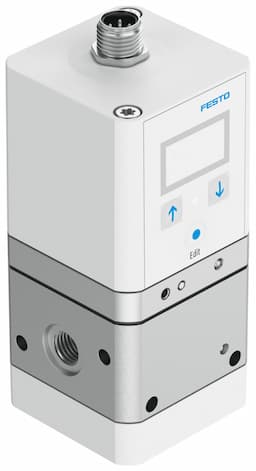

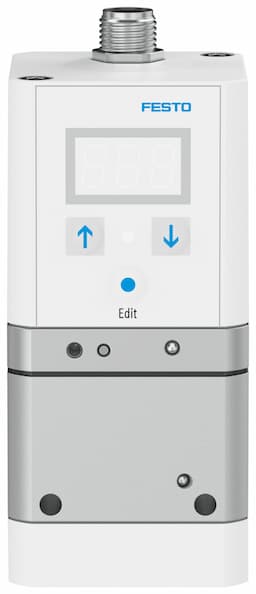

vppe-3-1-1/8-6-005-e1-f1a
Product ID:404
Updated: 2026/4/3
Key Features
- 1Regulate pressure precisely from 0.15 to 6 bar for consistent performance. 2、Integrate electrical actuation easily with control systems for reliable operation. 3、Ensure leak-free operation with a soft sealing principle to prevent pressure loss. 4、Mount the regulator in any position for flexible system design and integration. 5、Maintain safety with unregulated output pressure during power interruptions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any Preferably upright |
| Structural design | Pilot-controlled diaphragm regulator | Short-circuit protection | For all electrical connections |
| Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. | Symbol | 00995303 |
| Reverse polarity protection | for all electrical connections | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Valve function | 3-way proportional pressure control valve |
| Display type | LED display 3-digit | Pressure regulation range MPa | 0.006MPa 0.6MPa |
| Pressure regulation range | 0.06bar 6bar | Inlet pressure 1 | 6bar 8bar |
| Inlet pressure 1 MPa | 0.6MPa 0.8MPa | Max. pressure hysteresis | 0.435psi |
| Standard nominal flow rate | 800l/min | DC operating voltage range | 21.6V 26.4V |
| Max. current consumption | 160mA | Duty cycle | 100% |
| Max. electrical power consumption | 4.2W | Residual ripple | 10 % |
| Switching output | PNP | Analog output signal range | 1 - 5 V |
| Analog input signal range | 0 - 5 V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 60°C | Product weight | 390g |
| Linearity | 1%FS | Hysteresis | 0.5%FS |
| Reproducibility | 0.5%FS | Overall accuracy | 1.25 %FS |
| Temperature coefficient | 0.04%/K | Electrical connection | 5-pin M12 Plug |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Housing material | Aluminum, powder-coated |
| Manufacturer ID | 8156421 |
Specifications may be subject to change without notice
