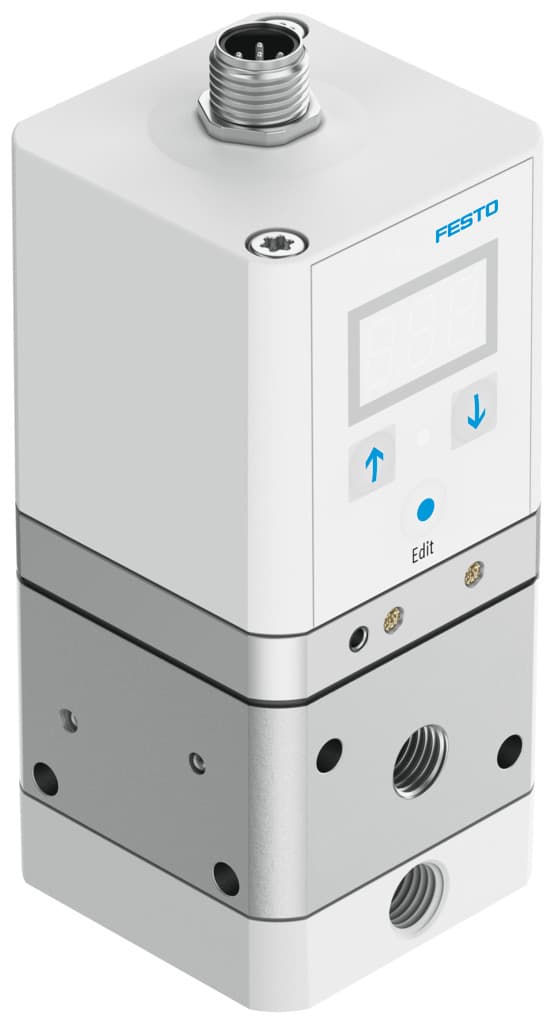

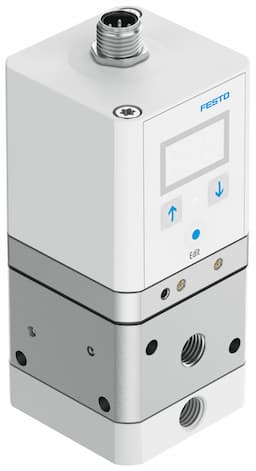

vppe-3-1-1/8-6-010-e1t
Product ID:13453
Updated: 2026/4/3
Key Features
- 1Regulate pressure with high accuracy for consistent performance. 2、Control easily via electrical signals for quick adjustments. 3、Ensure reliable sealing without lubrication to reduce maintenance. 4、Withstand harsh environments with IP65 protection and durable design. 5、Integrate flexibly with versatile mounting options including vertical.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any Preferably upright | Structural design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve | Display type | LED display 3-digit |
| Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
| Inlet pressure 1 | 6bar 8bar | Inlet pressure 1 MPa | 0.6MPa 0.8MPa |
| Max. pressure hysteresis | 0.435psi | Standard nominal flow rate | 800l/min |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 160mA |
| Duty cycle | 100% | Max. electrical power consumption | 4.2W |
| Residual ripple | 10 % | Switching output | PNP |
| Analog output signal range | 0 - 10 V | Analog input signal range | 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
| Product weight | 390g | Linearity | 1%FS |
| Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
| Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
| Electrical connection | 5-pin M12 Plug | Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, anodized | Manufacturer ID | 567539 |
Specifications may be subject to change without notice
