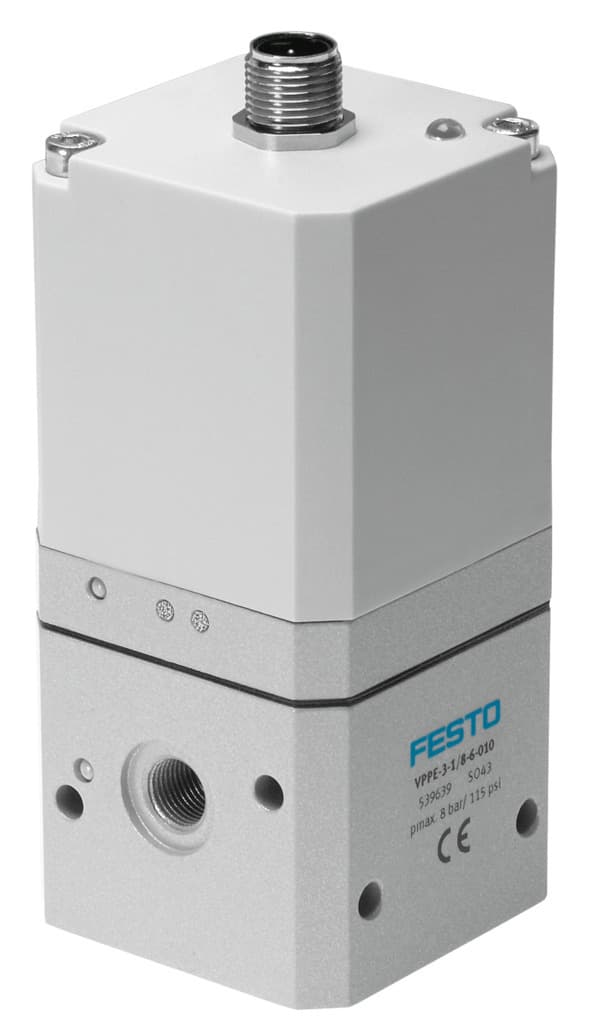

vppe-3-1/8-6-010
Product ID:10481
Updated: 2026/4/3
Key Features
- 1Ensure precise pressure control from 0.15 to 6 bar. 2、Utilize electrical setpoint specification for accurate adjustments. 3、Benefit from robust short circuit and polarity protection. 4、Simplify maintenance with a soft sealing principle. 5、Mount easily in block configurations for space efficiency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any Preferably vertical | Structural design | Pilot-controlled piston control valve |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Valve function | 3-way proportional pressure control valve closed | Operating pressure | 8bar |
| Pressure regulation range MPa | 0.015MPa 0.6MPa | Pressure regulation range | 0.15bar 6bar |
| Inlet pressure 1 | 6bar 8bar | Inlet pressure 1 MPa | 0.6MPa 0.8MPa |
| Max. pressure hysteresis | 0.15bar | Standard nominal flow rate | 850l/min |
| Switching time off | 1300ms | On switching time | 550ms |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 150mA |
| Max. electrical power consumption | 3.6W | Residual ripple | 10 % |
| Setpoint/actual values | Voltage type 0 - 10 V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 10°C 50°C | Product weight | 445g |
| Linearity | 1%FS | Hysteresis | 2.5%FS |
| Reproducibility | 0.5%FS | Overall accuracy | 2.25 %FS |
| Temperature coefficient | 0.04%/K | Electrical connection | 4-pin M12x1 Plug Round design |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy | Diaphragm material | NBR |
| Manufacturer ID | 539639 |
Specifications may be subject to change without notice
