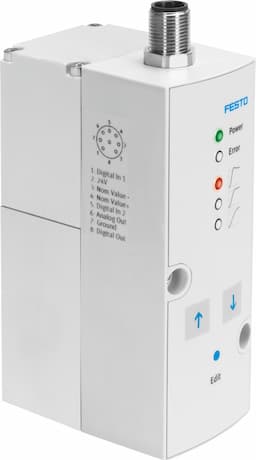

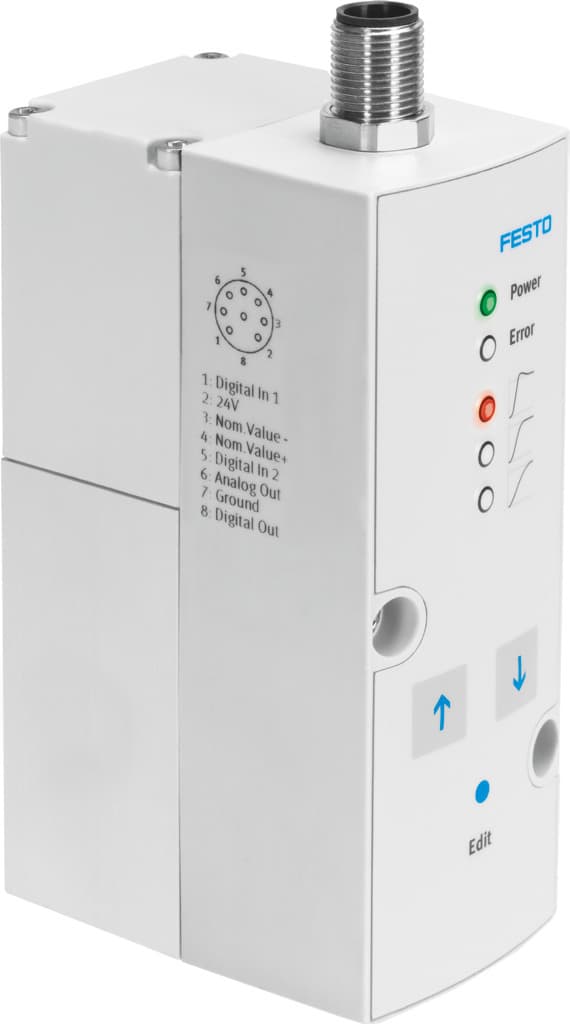

vppm-8
Product ID:10906
Updated: 2026/7/4
Key Features
- 1Ensure precise pressure regulation with multi-sensor control and temperature compensation.
- 2Install flexibly in any position with pilot-controlled diaphragm design.
- 3Protect all electrical connections with integrated short-circuit protection.
- 4Configure easily via digital inputs or display for customizable control responses.
- 5Communicate via IO-Link for cyclic data transfer and accurate diagnostics.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 8mm | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Structural design | Pilot-controlled diaphragm regulator | Short-circuit protection | For all electrical connections |
| Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. | Symbol | 00995303 |
| Reverse polarity protection | for all electrical connections | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Valve function | 3-way proportional pressure control valve |
| Display type | Back-lit LCD LED | Pressure regulation range | 0.02bar 10bar |
| Inlet pressure 1 | 0bar 11bar | Inlet pressure 1 MPa | 0MPa 1.1MPa |
| Standard nominal flow rate | 450l/min 2750l/min | DC operating voltage range | 21.6V 26.4V |
| Max. current consumption | 300mA | Duty cycle | 100% |
| Max. electrical power consumption | 7W | Residual ripple | 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
| Product weight | 560g | Linearity | 1%FS |
| Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
| Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
| Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug Via sub-base |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
| Manufacturer ID | 543433 |
Specifications may be subject to change without notice
