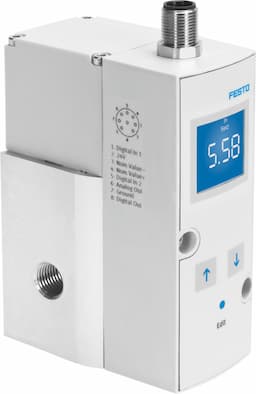

vppm-8l-l-1-g14-0l6h-a4p-s1c1
Product ID:13618
Updated: 2026/4/3
Key Features
- 1Regulate pressure precisely from 0.06 to 6 bar with minimal hysteresis. 2、Control easily via electrical actuation with a wide voltage range. 3、Ensure reliable sealing and operation with the soft sealing principle. 4、Monitor settings clearly on the backlit LCD display. 5、Mount the VPPM regulator in any position for versatile installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 8mm | Exhaust nominal width | 7mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve | Display type | Back-lit LCD |
| Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
| Inlet pressure 1 | 0bar 8bar | Inlet pressure 1 MPa | 0MPa 0.8MPa |
| Max. pressure hysteresis | 0.03bar | Standard nominal flow rate | 1750l/min |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
| Duty cycle | 100% | Max. electrical power consumption | 7W |
| Residual ripple | 10 % | Switching output | PNP |
| Analog output signal range | 4 - 20 mA | Analog input signal range | 4 - 20 mA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 50°C |
| Product weight | 560g | Linearity | 1%FS |
| Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
| Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
| Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
| Manufacturer ID | 571301 |
Specifications may be subject to change without notice
