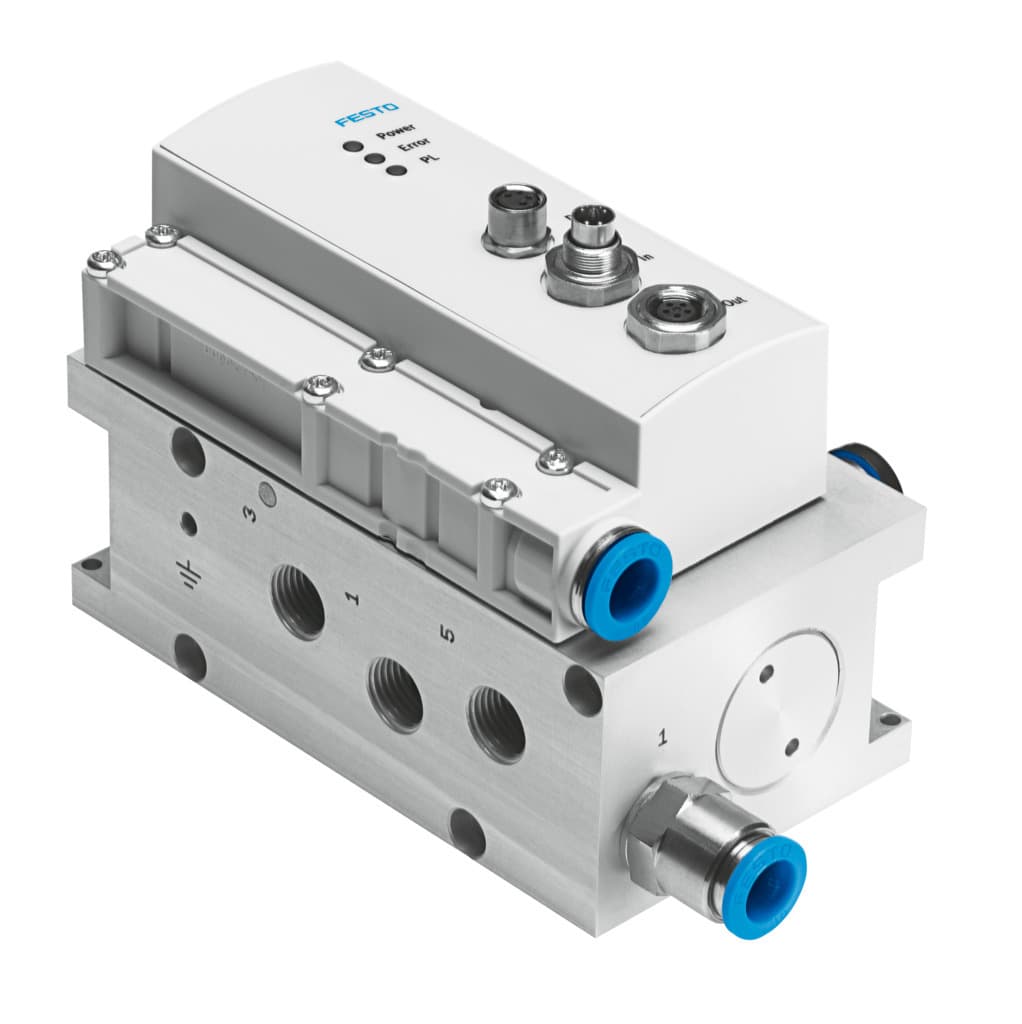

vpwp-4-
Product ID:11720
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic control with 5/3-way proportional operation and integrated pressure sensors. 2、Handle flows from 350 to 1400 l/min at 6 bar for versatile industrial use. 3、Maintain consistent performance via direct flow direction and non-reversible operation. 4、Monitor valve status in real-time with diagnostic LED indicators. 5、Integrate seamlessly using the CAN bus interface and terminating resistor.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Actuation type | Electrical |
| Sealing principle | Hard | Mounting position | Any Preferably horizontal (display elements facing upwards); if the pneumatic valve is moved, it must be mounted at right angles to the direction of movement |
| Structural design | Piston gate valve with integrated pressure sensors | Reset method | Magnetic spring |
| Safety instructions | VPWP safety position: the blocked mid-position is approached in case of a control interface malfunction. | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00992136 |
| Valve function | 5/3 proportional directional control valve, closed | Status indications | LED yellow = PL (power load) LED green = power LED red = error |
| Operating pressure | 0bar 10bar | Operating pressure for positioning/soft stop | 4bar 8bar |
| Nominal operating pressure | 87psi | Standard nominal flow rate | 350l/min |
| Nominal operating voltage DC | 24V | DC operating voltage range | 18V 30V |
| Load voltage range DC | 18V 30V | Max. load current at voltage output | 500mA |
| Max. load current of the digital output | 500mA | Max. current consumption, valve drive | 1.2A |
| Logic max. current consumption | 0.15A | Nominal voltage DC | 24V |
| Supply voltage of the digital output | 24 V load voltage | Supply voltage of the voltage output | 24 V load voltage |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions | Explosion prevention and protection | Zone 2 (ATEX) |
| ATEX category gas | II 3G | Type of ignition protection for gas | Ex nA IIC T5 X Gc |
| Explosive ambient temperature | 0°C <= Ta <= +50°C | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
| Degree of protection | IP65 In mounted state | Ambient temperature | 0°C 50°C |
| Product weight | 776g | Pressure resolution | 0.01bar |
| Linearity error FS | 1.5% | Repetition accuracy FS | 1% |
| Design of the 24 V voltage output | Reverse supply without destruction No galvanic isolation Short circuit-proof Reverse supply without destruction | Digital output design | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation Short circuit-proof Reverse supply without destruction |
| Control interface | Digital CAN bus with Festo protocol Terminating resistor integrated | Fieldbus interface electrical connection IN | Plug M9 5-pin |
| Fieldbus interface electrical connection OUT | Socket M9 5-pin | Fieldbus interface electrical connection | Socket M8 4-pin |
| Type of mounting | With through-hole With accessories | Color of connections | Connection 2: blue Connection 4: black |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Cover material | PA-reinforced | Housing material | Wrought aluminum alloy Anodized |
| Manufacturer ID | 550170 |
Specifications may be subject to change without notice
