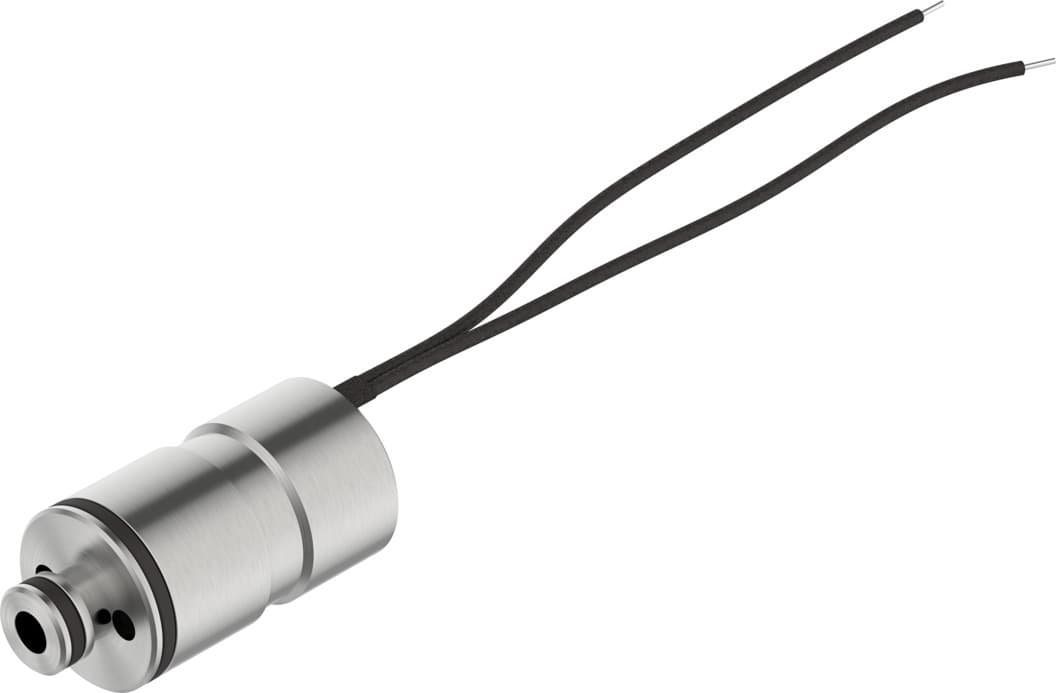

vpws-1-b-6-pc15-10-v
Product ID:194
Updated: 2026/4/3
Key Features
- 1Control precise gas flow up to 88 L/min for critical applications. 2、Ensure reliable operation with an electrically actuated, soft-sealing design. 3、Install flexibly in any position within a 5°C to 50°C range. 4、Meet strict standards with RoHS compliance and high-alloy steel housing. 5、Reduce maintenance using FPM seals suitable for oxygen and inert gases.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 1mm | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00995954 | Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0bar 10bar | Nominal operating pressure | 145psi |
| Burst pressure | 435psi | Standard flow rate | 68l/min 88l/min |
| Hysteresis | 16mA | Max. switching frequency | 18Hz |
| Current regulating range | 0mA 200mA | Max. electrical power consumption | 2.5W |
| Coil resistance | 60.5Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
| Oxygen suitability according to standard | ISO 15001 | Impurity level, hydrocarbons maximum | 550mg/m2 |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Medium | Inert gas Air Oxygen | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
| Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
| Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
| Storage temperature | -40°C 80°C | Product weight | 23g |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
| Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | Cartridge 7.2 mm | Note on materials | RoHS-compliant |
| Seals material | FPM | Housing material | High-alloy steel |
| Manufacturer ID | 8186783 |
Specifications may be subject to change without notice
